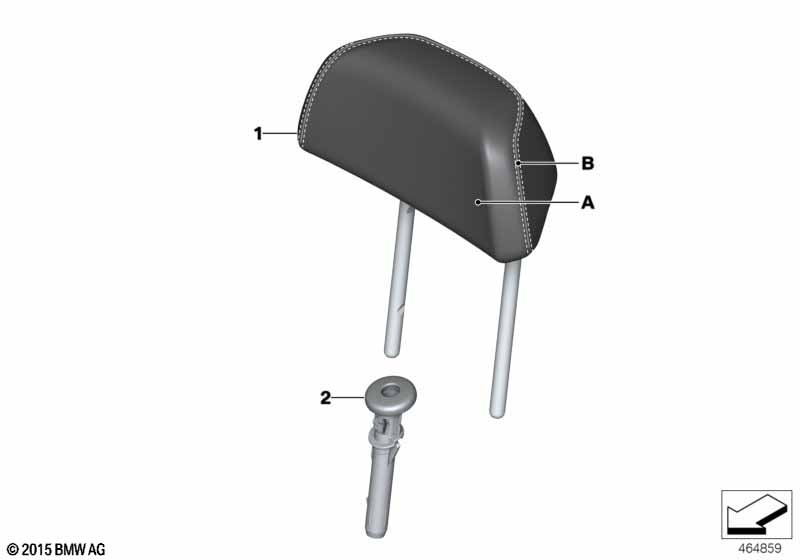

This Individual headrest, rear seat, outside technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.

No.	Description	Supp.	Qty	Part Number	Notes
i	---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Colour of thread ------------------------------------- For vehicles with Comfort seat, rear, electr. adjustable and Executive Lounge Fondkonsole	S460A=No S4F5A=No
	For vehicles with special trim (without colour statement) or Indi. full leather/caramel or Indi.full leather/"amarone" or Indi. full leather/fiona-rot or Indi. full leather/rauch-weiss or Indi. full leather/kaschmir-beige or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/rauch-weiss or Indi. full leather/"black" or Indi. full leather/tartufo	Z1XX=Yes ZBCR=Yes ZBF2=Yes ZBFQ=Yes ZBFU=Yes ZBKS=Yes ZBNQ=Yes ZBRJ=Yes ZBSW=Yes ZBTQ=Yes
01	Headrest Basis, leather	INDIVIDUAL	2	52207989909	NoS	Shop at ECS Tuning
	For vehicles with special trim (without colour statement) or Indi. full leather/kaschmir-beige	Z1XX=Yes ZBKS=Yes
02	Guide, headrest, lockable	KASCHMIRBEIGE	2	52207990273	NoS	Shop at ECS Tuning
02	Guide, headrest	KASCHMIRBEIGE	2	52207990278	NoS	Shop at ECS Tuning
	For vehicles with special trim (without colour statement) or Indi. full leather/fiona-rot	Z1XX=Yes ZBFQ=Yes
02	Guide, headrest, lockable	FIONAROT	2	52207990274	NoS	Shop at ECS Tuning
02	Guide, headrest	FIONAROT	2	52207990279	NoS	Shop at ECS Tuning
	For vehicles with special trim (without colour statement) or Indi. full leather/tartufo	Z1XX=Yes ZBTQ=Yes
02	Guide, headrest, lockable	TARTUFO	2	52207990270	NoS	Shop at ECS Tuning
02	Guide, headrest	TARTUFO	2	52207990275	NoS	Shop at ECS Tuning
	For vehicles with special trim (without colour statement) or Indi. full leather/caramel	Z1XX=Yes ZBCR=Yes
02	Guide, headrest, lockable	CARAMEL	2	52207990272	NoS	Shop at ECS Tuning
02	Guide, headrest	CARAMEL	2	52207990277	NoS	Shop at ECS Tuning
	For vehicles with special trim (without colour statement) or Indi. full leather/rauch-weiss or Indi. full leather/rauch-weiss	Z1XX=Yes ZBFU=Yes ZBRJ=Yes
02	Guide, headrest, lockable	RAUCHWEISS	2	52207990271	NoS	Shop at ECS Tuning
02	Guide, headrest	RAUCHWEISS	2	52207990276	NoS	Shop at ECS Tuning

Notes

NoS = No Stock (Part centrally not stocked)
