Individual cover rear comfort seat for BMW 7 Series G12 750Li (2018)

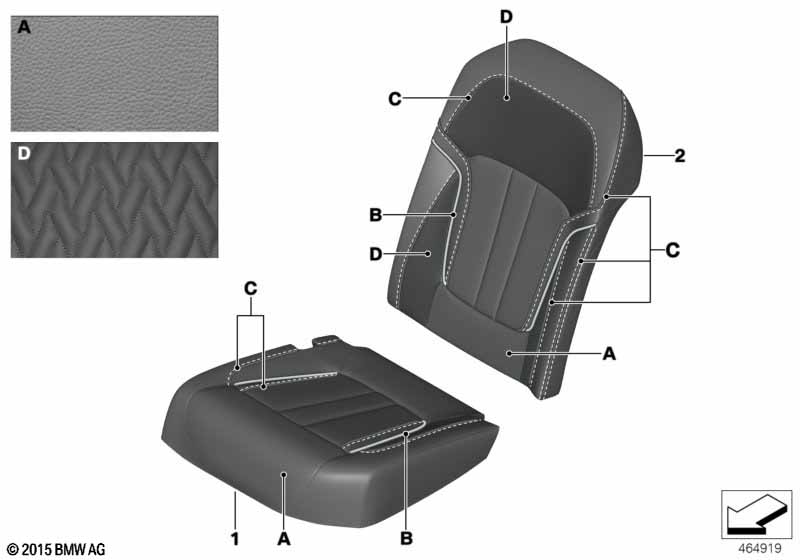

This Individual cover rear comfort seat technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) part number leather - (B) color specification welt - (C) color specification thread - (D) part number leather (knitted look) ------------------------------------- For vehicles with Climate-controlled seats, front and Climate-controlled seats, rear and Comfort seat, rear, electr. adjustable and special trim (without colour statement) or Indi. full leather/caramel or Indi. full leather/fiona-rot or Indi. full leather/rauch-weiss or Indi. full leather/kaschmir-beige or Indi. full leather/rauch-weiss or Indi. full leather/"black" or Indi. full leather/tartufo |
S453A=No S454A=No S460A=Yes Z1XX=Yes ZBCR=Yes ZBFQ=Yes ZBFU=Yes ZBKS=Yes ZBRJ=Yes ZBSW=Yes ZBTQ=Yes |
||||||||
| For vehicles with Executive Lounge Fondkonsole |
S4F5A=No |
|||||||||
| 01 | Cover for comfort seat, leather left | INDIVIDUAL | 1 | 07/2015 | 52107989161 | NoS | Shop at ECS Tuning | |||
| 01 | Cover for comfort seat, leather right | INDIVIDUAL | 1 | 07/2015 | 52107989162 | NoS | Shop at ECS Tuning | |||
| For vehicles with Executive Lounge Fondkonsole |
S4F5A=Yes |
|||||||||
| 01 | Cover for comfort seat, leather left | INDIVIDUAL | 1 | 07/2015 | 52207989891 | NoS | Shop at ECS Tuning | |||
| 01 | Cover for comfort seat, leather right | INDIVIDUAL | 1 | 07/2015 | 52207989892 | NoS | Shop at ECS Tuning | |||
| 02 | Cover for comfort backrest,leather left | INDIVIDUAL | 1 | 07/2015 | 52107989163 | NoS | Shop at ECS Tuning | |||
| 02 | Cover for comfort backrest,leather right | INDIVIDUAL | 1 | 07/2015 | 52107989164 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
