Indiv.door trim panel, front leather for BMW 7 Series G12 740i (2019)

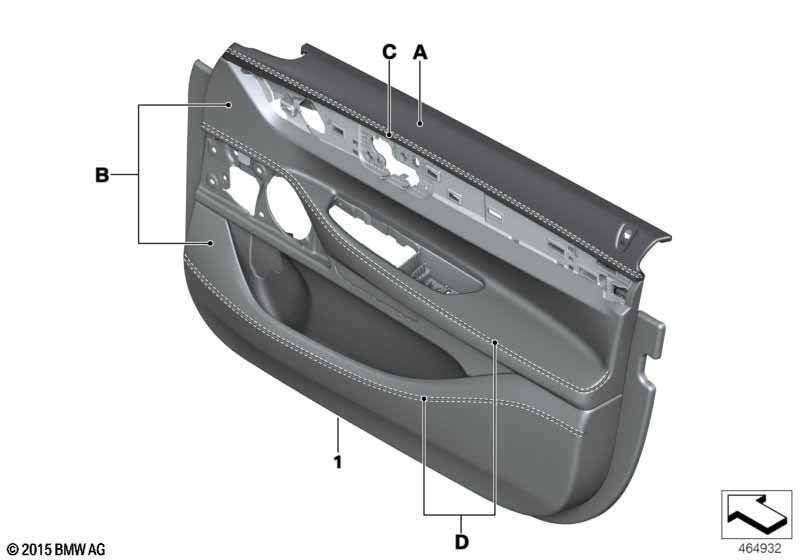

This Indiv.door trim panel, front leather technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) color specification leather upper section - (B) part number leather lower section - (C) color specification thread upper section - (D) color specification thread lower section --------------------------- |
|||||||||
| For vehicles with special trim (without colour statement) or Indi. full leather/caramel or Indi. full leather/fiona-rot or Indi. full leather/rauch-weiss or Indi. full leather/kaschmir-beige or Indi. full leather/rauch-weiss or Indi. full leather/"black" or Indi. full leather/tartufo |
Z1XX=Yes ZBCR=Yes ZBFQ=Yes ZBFU=Yes ZBKS=Yes ZBRJ=Yes ZBSW=Yes ZBTQ=Yes |
|||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 51417991273 | NoS | Shop at ECS Tuning | ||||
| 01 | Door panel, leather, front right | INDIVIDUAL | 1 | 51417991274 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740i Indiv.door trim panel, front leather?
- This technical diagram illustrates the Indiv.door trim panel, front leather within the Individual equipment group for the 7 Series G12 740i produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Door panel, leather, front left (Part #51417991273).
- Which models use the hardware listed in this Indiv.door trim panel, front leather?
- The hardware and components featured in the Indiv.door trim panel, front leather are specific to the 7 Series G12 740i produced during 2019. These technical specifications ensure that parts like the Door panel, leather, front left (51417991273) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Indiv.door trim panel, front leather assembly?
- Each item in the Indiv.door trim panel, front leather corresponds to the numbered list below the illustration. For the 7 Series G12 740i, you can identify the Door panel, leather, front left by locating its position on the schematic, which then links to the official BMW part number 51417991273 for the Individual equipment section.
