Ind. mounted parts rear door trim panel for BMW 7 Series G11 730dX (2019)

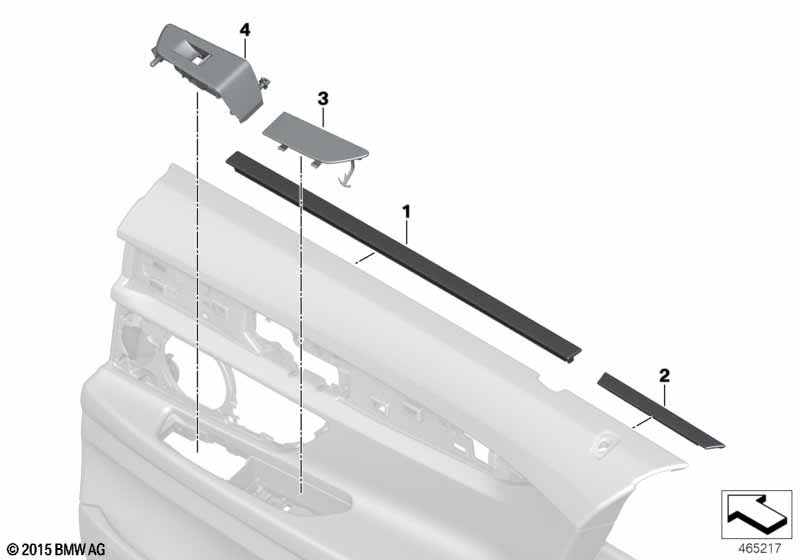

This Ind. mounted parts rear door trim panel technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 730dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Important notice! Standard series components are also installed in "Individual" vehicles. Please check in advance to confirm that the required spare part is not a series component. --------------------------- |
|||||||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/rauch-weiss |
S416A=Yes Z1XX=Yes ZBRJ=Yes |
|||||||||
| 01 | Shoulder left long | VIOLA DUNKEL | 1 | 51427989987 | NoS | Shop at ECS Tuning | ||||
| 01 | Shoulder right long | VIOLA DUNKEL | 1 | 51427989988 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/caramel or Indi.full leather/"amarone" or Indi. full leather/fiona-rot or Indi. full leather/rauch-weiss or Indi. full leather/kaschmir-beige or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/"black" or Indi. full leather/tartufo |
S416A=Yes Z1XX=Yes ZBCR=Yes ZBF2=Yes ZBFQ=Yes ZBFU=Yes ZBKS=Yes ZBNQ=Yes ZBSW=Yes ZBTQ=Yes |
|||||||||
| 01 | Shoulder left long | SCHWARZ | 1 | 51427406187 | Shop at ECS Tuning | |||||
| 01 | Shoulder right long | SCHWARZ | 1 | 51427406188 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/rauch-weiss |
S416A=Yes Z1XX=Yes ZBRJ=Yes |
|||||||||
| 02 | Shoulder left short | VIOLA DUNKEL | 1 | 51427989985 | NoS | Shop at ECS Tuning | ||||
| 02 | Shoulder right short | VIOLA DUNKEL | 1 | 51427989986 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/caramel or Indi.full leather/"amarone" or Indi. full leather/fiona-rot or Indi. full leather/rauch-weiss or Indi. full leather/kaschmir-beige or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/"black" or Indi. full leather/tartufo |
S416A=Yes Z1XX=Yes ZBCR=Yes ZBF2=Yes ZBFQ=Yes ZBFU=Yes ZBKS=Yes ZBNQ=Yes ZBSW=Yes ZBTQ=Yes |
|||||||||
| 02 | Shoulder left short | SCHWARZ | 1 | 51427411591 | Shop at ECS Tuning | |||||
| 02 | Shoulder right short | SCHWARZ | 1 | 51427411592 | Shop at ECS Tuning | |||||
| For vehicles with special trim (without colour statement) or Indi. full leather/tartufo |
Z1XX=Yes ZBTQ=Yes |
|||||||||
| 03 | Cover for handle recess, left | TARTUFO | 1 | 51427990239 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover for handle recess, right | TARTUFO | 1 | 51427990240 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/caramel |
Z1XX=Yes ZBCR=Yes |
|||||||||
| 03 | Cover for handle recess, left | CARAMEL | 1 | 51427990243 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover for handle recess, right | CARAMEL | 1 | 51427990244 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/fiona-rot |
Z1XX=Yes ZBFQ=Yes |
|||||||||
| 03 | Cover for handle recess, left | FIONAROT | 1 | 51427990247 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover for handle recess, right | FIONAROT | 1 | 51427990248 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/kaschmir-beige |
Z1XX=Yes ZBKS=Yes |
|||||||||
| 03 | Cover for handle recess, left | KASCHMIRBEIGE | 1 | 51427990245 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover for handle recess, right | KASCHMIRBEIGE | 1 | 51427990246 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/rauch-weiss or Indi. full leather/rauch-weiss |
Z1XX=Yes ZBFU=Yes ZBRJ=Yes |
|||||||||
| 03 | Cover for handle recess, left | RAUCHWEIß | 1 | 51427990241 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover for handle recess, right | RAUCHWEIß | 1 | 51427990242 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/caramel |
S416A=No Z1XX=Yes ZBCR=Yes |
|||||||||
| 04 | Trim, switch, rear door, left | CARAMEL | 1 | 51427990129 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim, switch, rear door, right | CARAMEL | 1 | 51427990130 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/kaschmir-beige |
S416A=No Z1XX=Yes ZBKS=Yes |
|||||||||
| 04 | Trim, switch, rear door, left | KASCHMIRBEIGE | 1 | 51427990125 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim, switch, rear door, right | KASCHMIRBEIGE | 1 | 51427990126 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/fiona-rot |
S416A=No Z1XX=Yes ZBFQ=Yes |
|||||||||
| 04 | Trim, switch, rear door, left | FIONAROT | 1 | 51427990127 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim, switch, rear door, right | FIONAROT | 1 | 51427990128 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/tartufo |
S416A=Yes Z1XX=Yes ZBTQ=Yes |
|||||||||
| 04 | Trim, switch, rear door, left | TARTUFO | 1 | 51427990133 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim, switch, rear door, right | TARTUFO | 1 | 51427990134 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim, switch, rear door, left | FIONAROT | 1 | 51427990137 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim, switch, rear door, right | FIONAROT | 1 | 51427990138 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/tartufo |
S416A=No Z1XX=Yes ZBTQ=Yes |
|||||||||
| 04 | Trim, switch, rear door, left | TARTUFO | 1 | 51427990123 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim, switch, rear door, right | TARTUFO | 1 | 51427990124 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/kaschmir-beige |
S416A=Yes Z1XX=Yes ZBKS=Yes |
|||||||||
| 04 | Trim, switch, rear door, left | KASCHMIRBEIGE | 1 | 51427990135 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim, switch, rear door, right | KASCHMIRBEIGE | 1 | 51427990136 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/caramel |
S416A=Yes Z1XX=Yes ZBCR=Yes |
|||||||||
| 04 | Trim, switch, rear door, left | CARAMEL | 1 | 51427990139 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim, switch, rear door, right | CARAMEL | 1 | 51427990140 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/rauch-weiss or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/rauch-weiss |
S416A=No Z1XX=Yes ZBFU=Yes ZBNQ=Yes ZBRJ=Yes |
|||||||||
| 04 | Trim, switch, rear door, left | RAUCHWEIß | 1 | 51427990131 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim, switch, rear door, right | RAUCHWEIß | 1 | 51427990132 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Indi. full leather/rauch-weiss or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/rauch-weiss |
S416A=Yes Z1XX=Yes ZBFU=Yes ZBNQ=Yes ZBRJ=Yes |
|||||||||
| 04 | Trim, switch, rear door, left | RAUCHWEIß | 1 | 51427990141 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim, switch, rear door, right | RAUCHWEIß | 1 | 51427990142 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
