Individual instrument panel mount. parts for BMW 7 Series G11 LCI 740dX (2022)

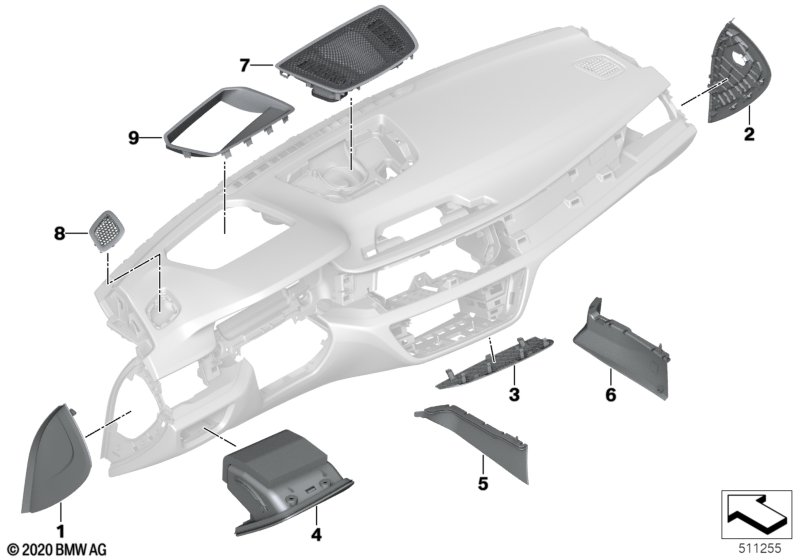

This Individual instrument panel mount. parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Important notice! Standard series components are also installed in "Individual" vehicles. Please check in advance to confirm that the required spare part is not a series component. --------------------------- |
|||||||||
| For vehicles with special trim (without colour statement) or Indi.full leather/"amarone" |
Z1XX=Yes ZBF2=Yes |
|||||||||
| 01 | Side cover, right | AMARONE | 1 | 51457995632 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/kaschmir-beige |
Z1XX=Yes ZBKS=Yes |
|||||||||
| 01 | Side cover, right | KASCHMIRBEIGE | 1 | 51457991086 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/tartufo |
Z1XX=Yes ZBTQ=Yes |
|||||||||
| 01 | Side cover, right | TARTUFO | 1 | 51457989948 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/caramel |
Z1XX=Yes ZBCR=Yes |
|||||||||
| 01 | Side cover, right | CARAMEL | 1 | 51457991084 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/fiona-rot |
Z1XX=Yes ZBFQ=Yes |
|||||||||
| 01 | Side cover, right | FIONAROT | 1 | 51457991088 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and special trim (without colour statement) or Indi. full leather/caramel |
L810A=Yes Z1XX=Yes ZBCR=Yes |
|||||||||
| 01 | Side cover, left | CARAMEL | 1 | 51457991075 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and special trim (without colour statement) or Indi. full leather/fiona-rot |
L810A=Yes Z1XX=Yes ZBFQ=Yes |
|||||||||
| 01 | Side cover, left | FIONAROT | 1 | 51457991079 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and special trim (without colour statement) or Indi. full leather/kaschmir-beige |
L810A=Yes Z1XX=Yes ZBKS=Yes |
|||||||||
| 01 | Side cover, left | KASCHMIRBEIGE | 1 | 51457991077 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and special trim (without colour statement) or Indi. full leather/tartufo |
L810A=Yes Z1XX=Yes ZBTQ=Yes |
|||||||||
| 01 | Side cover, left | TARTUFO | 1 | 51457989945 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and special trim (without colour statement) or Indi.full leather/"amarone" |
L810A=Yes Z1XX=Yes ZBF2=Yes |
|||||||||
| 01 | Side cover, left | AMARONE | 1 | 51457995629 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/rauch-weiss or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/rauch-weiss |
Z1XX=Yes ZBFU=Yes ZBNQ=Yes ZBRJ=Yes |
|||||||||
| 01 | Side cover, right | RAUCHWEIß | 1 | 51457991082 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and special trim (without colour statement) or Indi. full leather/rauch-weiss or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/rauch-weiss |
L810A=Yes Z1XX=Yes ZBFU=Yes ZBNQ=Yes ZBRJ=Yes |
|||||||||
| 01 | Side cover, left | RAUCHWEIß | 1 | 51457991073 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and special trim (without colour statement) or Indi. full leather/caramel |
L810A=No Z1XX=Yes ZBCR=Yes |
|||||||||
| 02 | Side cover for "Airbag off" left | CARAMEL | 1 | 51457991083 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and special trim (without colour statement) or Indi. full leather/fiona-rot |
L810A=No Z1XX=Yes ZBFQ=Yes |
|||||||||
| 02 | Side cover for "Airbag off" left | FIOAROT | 1 | 51457991087 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and special trim (without colour statement) or Indi. full leather/tartufo |
L810A=No Z1XX=Yes ZBTQ=Yes |
|||||||||
| 02 | Side cover for "Airbag off" left | TARTUFO | 1 | 51457989947 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and special trim (without colour statement) or Indi.full leather/"amarone" |
L810A=No Z1XX=Yes ZBF2=Yes |
|||||||||
| 02 | Side cover for "Airbag off" left | AMARONE | 1 | 51457995631 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and special trim (without colour statement) or Indi. full leather/kaschmir-beige |
L810A=No Z1XX=Yes ZBKS=Yes |
|||||||||
| 02 | Side cover for "Airbag off" left | KASCHMIRBEIGE | 1 | 51457991085 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and special trim (without colour statement) or Indi. full leather/rauch-weiss or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/rauch-weiss |
L810A=No Z1XX=Yes ZBFU=Yes ZBNQ=Yes ZBRJ=Yes |
|||||||||
| 02 | Side cover for "Airbag off" left | RAUCHWEIß | 1 | 51457991081 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi.full leather/"amarone" |
Z1XX=Yes ZBF2=Yes |
|||||||||
| 03 | Cover panel, Centerstack | AMARONE | 1 | 51457995634 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/kaschmir-beige |
Z1XX=Yes ZBKS=Yes |
|||||||||
| 03 | Cover panel, Centerstack | KASCHMIRBEIGE | 1 | 51457990471 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/tartufo |
Z1XX=Yes ZBTQ=Yes |
|||||||||
| 03 | Cover panel, Centerstack | TARTUFO | 1 | 51457990468 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/caramel |
Z1XX=Yes ZBCR=Yes |
|||||||||
| 03 | Cover panel, Centerstack | CARAMEL | 1 | 51457990470 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/fiona-rot |
Z1XX=Yes ZBFQ=Yes |
|||||||||
| 03 | Cover panel, Centerstack | FIONAROT | 1 | 51457990472 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/rauch-weiss or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/rauch-weiss |
Z1XX=Yes ZBFU=Yes ZBNQ=Yes ZBRJ=Yes |
|||||||||
| 03 | Cover panel, Centerstack | RAUCHWEIß | 1 | 51457990469 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi.full leather/"amarone" |
Z1XX=Yes ZBF2=Yes |
|||||||||
| 04 | Fold-out bin, driver side, leather | AMARONE | 1 | 51457995554 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/kaschmir-beige |
Z1XX=Yes ZBKS=Yes |
|||||||||
| 04 | Fold-out bin, driver side, leather | KASCHMIRBEIGE | 1 | 51457991264 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/tartufo |
Z1XX=Yes ZBTQ=Yes |
|||||||||
| 04 | Fold-out bin, driver side, leather | TARTUFO | 1 | 51457989938 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/caramel |
Z1XX=Yes ZBCR=Yes |
|||||||||
| 04 | Fold-out bin, driver side, leather | CARAMEL | 1 | 51457991054 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/fiona-rot |
Z1XX=Yes ZBFQ=Yes |
|||||||||
| 04 | Fold-out bin, driver side, leather | FIONAROT | 1 | 51457991060 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/rauch-weiss or Indiv.full lthr/Smoke White/Night Blue or Indi. full leather/rauch-weiss |
Z1XX=Yes ZBFU=Yes ZBNQ=Yes ZBRJ=Yes |
|||||||||
| 04 | Fold-out bin, driver side, leather | RAUCHWEIß | 1 | 51457991250 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi.full leather/"amarone" Driver's side |
Z1XX=Yes ZBF2=Yes |
|||||||||
| 05 | Trim cover, tunnel, front right | AMARONE | 1 | 51457995637 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/kaschmir-beige Driver's side |
Z1XX=Yes ZBKS=Yes |
|||||||||
| 05 | Trim cover, tunnel, front right | KASCHMIRBEIGE | 1 | 51457990561 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/tartufo Driver's side |
Z1XX=Yes ZBTQ=Yes |
|||||||||
| 05 | Cover panel tunnel driver's side | TARTUFO | 1 | 51457947646 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indiv.full lthr/Smoke White/Night Blue Driver's side |
Z1XX=Yes ZBNQ=Yes |
|||||||||
| 05 | Cover panel tunnel driver's side | NACHTBLAU | 1 | 51456818098 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/caramel Driver's side |
Z1XX=Yes ZBCR=Yes |
|||||||||
| 05 | Trim cover, tunnel, front right | CARAMEL | 1 | 51457990560 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/fiona-rot Driver's side |
Z1XX=Yes ZBFQ=Yes |
|||||||||
| 05 | Cover panel tunnel driver's side | FIONAROT | 1 | 51457947647 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/rauch-weiss or Indi. full leather/rauch-weiss Driver's side |
Z1XX=Yes ZBFU=Yes ZBRJ=Yes |
|||||||||
| 05 | Trim cover, tunnel, front right | RAUCHWEIß | 1 | 51457990559 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi.full leather/"amarone" Passenger's side |
Z1XX=Yes ZBF2=Yes |
|||||||||
| 06 | Trim cover, tunnel, front left | AMARONE | 1 | 51457995638 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/kaschmir-beige Passenger's side |
Z1XX=Yes ZBKS=Yes |
|||||||||
| 06 | Trim cover, tunnel, front left | KASCHMIRBEIGE | 1 | 51457990571 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/tartufo Passenger's side |
Z1XX=Yes ZBTQ=Yes |
|||||||||
| 06 | Cover panel tunnel passenger's side | TARTUFO | 1 | 51457947648 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indiv.full lthr/Smoke White/Night Blue Passenger's side |
Z1XX=Yes ZBNQ=Yes |
|||||||||
| 06 | Cover panel tunnel passenger's side | NACHTBLAU | 1 | 51456818100 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/caramel Passenger's side |
Z1XX=Yes ZBCR=Yes |
|||||||||
| 06 | Trim cover, tunnel, front left | CARAMEL | 1 | 51457990570 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/fiona-rot Passenger's side |
Z1XX=Yes ZBFQ=Yes |
|||||||||
| 06 | Cover panel tunnel passenger's side | FIONAROT | 1 | 51457947649 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/rauch-weiss or Indi. full leather/rauch-weiss Passenger's side |
Z1XX=Yes ZBFU=Yes ZBRJ=Yes |
|||||||||
| 06 | Trim cover, tunnel, front left | RAUCHWEIß | 1 | 51457990569 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Bowers & Wilkins High End Sound System and special trim (without colour statement) or Indiv.full lthr/Smoke White/Night Blue |
S6F1A=No Z1XX=Yes ZBNQ=Yes |
|||||||||
| 07 | Cover, center speaker | NACHTBLAU | 1 | 51457997770 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indiv.full lthr/Smoke White/Night Blue |
Z1XX=Yes ZBNQ=Yes |
|||||||||
| 08 | Trim side window defroster driver | NACHTBLAU | 1 | 51457997771 | NoS | Shop at ECS Tuning | ||||
| 08 | Trim side window defroster fr.passenger | NACHTBLAU | 1 | 51457997772 | NoS | Shop at ECS Tuning | ||||
| 08 | Trim side window defroster fr.passenger | NACHTBLAU | 1 | 51457997773 | NoS | Shop at ECS Tuning | ||||
| 08 | Trim side window defroster driver | NACHTBLAU | 1 | 51457997774 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Head-up display and special trim (without colour statement) or Indiv.full lthr/Smoke White/Night Blue |
S610A=Yes Z1XX=Yes ZBNQ=Yes |
|||||||||
| 09 | Trim piece for head-up display | NACHTBLAU | 1 | 51457997768 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
