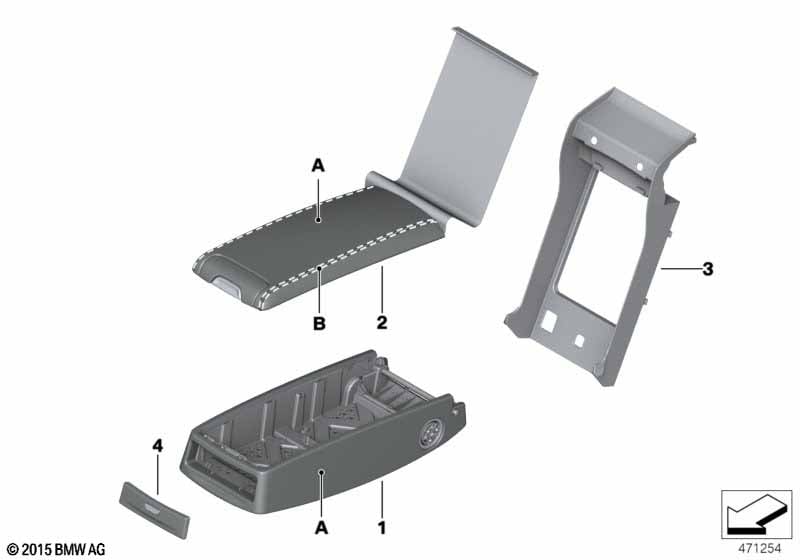

Individual armrest, basic rear for BMW 7 Series G12 740eX (2019)
This Individual armrest, basic rear technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather --------------------------- For vehicles with Comfort seat, rear, electr. adjustable or Executive Lounge Fondkonsole or Fond Entertainment Experience or Rear compartment telephone or BMW Touch Command |
S460A=No S4F5A=No S6FRA=No S6NBA=No S6U9A=No |
||||||||
| For vehicles with special trim (without colour statement) or Indi. full leather/caramel or Indi.full leather/"amarone" or Indi. full leather/fiona-rot or Indi. full leather/rauch-weiss or Indi. full leather/kaschmir-beige or Indi. full leather/rauch-weiss or Indi. full leather/"black" or Indi. full leather/tartufo |
Z1XX=Yes ZBCR=Yes ZBF2=Yes ZBFQ=Yes ZBFU=Yes ZBKS=Yes ZBRJ=Yes ZBSW=Yes ZBTQ=Yes |
|||||||||
| 01 | Armrest lower leather | INDIVIDUAL | 1 | 52207991546 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/rauch-weiss with contrast thread black |
Z1XX=Yes ZBFU=Yes |
|||||||||
| 02 | Cover, armrest leather | RAUCHWEISS | 1 | 52207991549 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/caramel |
Z1XX=Yes ZBCR=Yes |
|||||||||
| 02 | Cover, armrest leather | CARAMEL | 1 | 52207991551 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/kaschmir-beige |
Z1XX=Yes ZBKS=Yes |
|||||||||
| 02 | Cover, armrest leather | KASCHMIRBEIGE | 1 | 52207991550 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/fiona-rot |
Z1XX=Yes ZBFQ=Yes |
|||||||||
| 02 | Cover, armrest leather | FIONAROT | 1 | 52207991552 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/rauch-weiss with contrast thread dark violet |
Z1XX=Yes ZBRJ=Yes |
|||||||||
| 02 | Cover, armrest leather | RAUCHWEISS | 1 | 52207991548 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/tartufo |
Z1XX=Yes ZBTQ=Yes |
|||||||||
| 02 | Cover, armrest leather | TARTUFO | 1 | 52207991547 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/caramel |
Z1XX=Yes ZBCR=Yes |
|||||||||
| 03 | Trim shaft cover basic version | CARAMEL | 1 | 52207991125 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/tartufo |
Z1XX=Yes ZBTQ=Yes |
|||||||||
| 03 | Trim shaft cover basic version | TARTUFO | 1 | 52207989922 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. full leather/rauch-weiss or Indi. full leather/rauch-weiss |
Z1XX=Yes ZBFU=Yes ZBRJ=Yes |
|||||||||
| 03 | Trim shaft cover basic version | RAUCHWEISS | 1 | 52207991124 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi.full leather/"amarone" or Indi. full leather/fiona-rot or Indi. full leather/kaschmir-beige |
Z1XX=Yes ZBF2=Yes ZBFQ=Yes ZBKS=Yes |
|||||||||
| 03 | Trim for center armrest | SCHWARZ | 1 | 52207411057 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package incl. Design Pure Exc. and Interior design 'Pure Excellence' and Interior strips, piano lacquer, black and special trim (without colour statement) or Indi. full leather/tartufo not suitable for individual wood |
P7S0A=No P7S5A=No S4MLA=No Z1XX=Yes ZBTQ=Yes |
|||||||||
| 04 | Trim cupholder plastic | TARTUFO | 1 | 52207989921 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports package incl. Design Pure Exc. and Interior design 'Pure Excellence' and Interior strips, piano lacquer, black and special trim (without colour statement) or Indi. full leather/kaschmir-beige not suitable for individual wood |
P7S0A=No P7S5A=No S4MLA=No Z1XX=Yes ZBKS=Yes |
|||||||||
| 04 | Trim cupholder plastic | KASCHMIRBEIGE | 1 | 52207990257 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports package incl. Design Pure Exc. and Interior design 'Pure Excellence' and Interior strips, piano lacquer, black and special trim (without colour statement) or Indi. full leather/caramel not suitable for individual wood |
P7S0A=No P7S5A=No S4MLA=No Z1XX=Yes ZBCR=Yes |
|||||||||
| 04 | Trim cupholder plastic | CARAMEL | 1 | 52207990256 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports package incl. Design Pure Exc. and Interior design 'Pure Excellence' and Interior strips, piano lacquer, black and special trim (without colour statement) or Indi. full leather/fiona-rot not suitable for individual wood |
P7S0A=No P7S5A=No S4MLA=No Z1XX=Yes ZBFQ=Yes |
|||||||||
| 04 | Trim cupholder plastic | FIONAROT | 1 | 52207990258 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports package incl. Design Pure Exc. and Interior design 'Pure Excellence' and Interior strips, piano lacquer, black and special trim (without colour statement) or Indi. full leather/rauch-weiss or Indi. full leather/rauch-weiss not suitable for individual wood |
P7S0A=No P7S5A=No S4MLA=No Z1XX=Yes ZBFU=Yes ZBRJ=Yes |
|||||||||
| 04 | Trim cupholder plastic | RAUCHWEISS | 1 | 52207990255 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
