Individ.through-loading syst.,rear seat for BMW 5 Series G31 Touring 520d (2019)

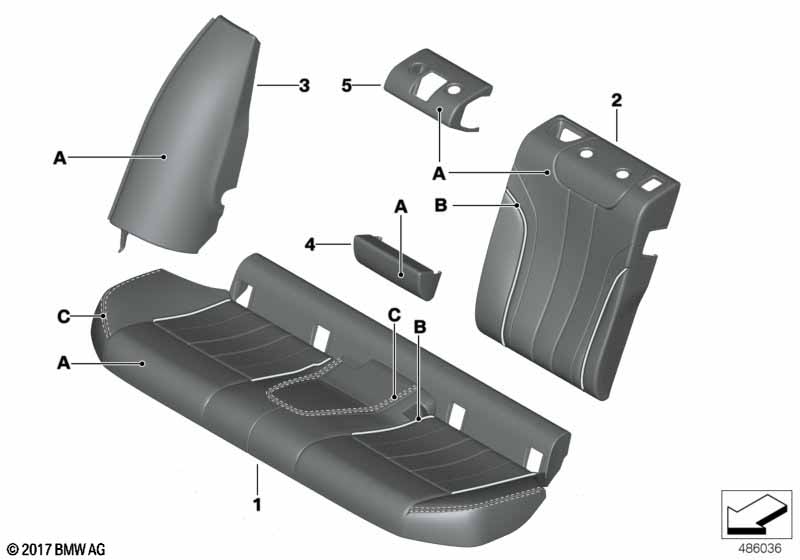

This Individ.through-loading syst.,rear seat technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part Number Leather - (B) Part Number Leather, (piping) - (C) Color specification, threads --------------------------- For vehicles with special trim (without colour statement) or Individual leather extended/caramel or Indi. leather, expanded/rauch-weiss or Individual leather extended/tartufo or Indi. full leather/caramel or Indi. full leather/rauch-weiss or Indi. full leather/tartufo |
Z1XX=Yes ZACR=Yes ZAFU=Yes ZATQ=Yes ZBCR=Yes ZBFU=Yes ZBTQ=Yes |
||||||||
| For vehicles with special trim (without colour statement) or Individual leather extended/caramel or Indi. leather, expanded/rauch-weiss or Individual leather extended/tartufo or Indi. full leather/caramel or Indi. full leather/rauch-weiss or Indi. full leather/tartufo |
Z1XX=Yes ZACR=Yes ZAFU=Yes ZATQ=Yes ZBCR=Yes ZBFU=Yes ZBTQ=Yes |
|||||||||
| 01 | Seat cover leather | INDIVIDUAL | 1 | 52207991765 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather left | INDIVIDUAL | 1 | 52207991767 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest leather right | INDIVIDUAL | 1 | 52207991768 | NoS | Shop at ECS Tuning | ||||
| 03 | Side finisher, leather, left | INDIVIDUAL | 1 | 52207992249 | NoS | Shop at ECS Tuning | ||||
| 03 | Side finisher, leather, right | INDIVIDUAL | 1 | 52207992250 | NoS | Shop at ECS Tuning | ||||
| 04 | Cover, backrest, center, leather, lower | INDIVIDUAL | 1 | 52207991766 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover, backrest, center, leather, upper | INDIVIDUAL | 1 | 52207991811 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
