Ind. headrest, sports seat, front for BMW 5 Series F90 M5 LCI M5 (2023)

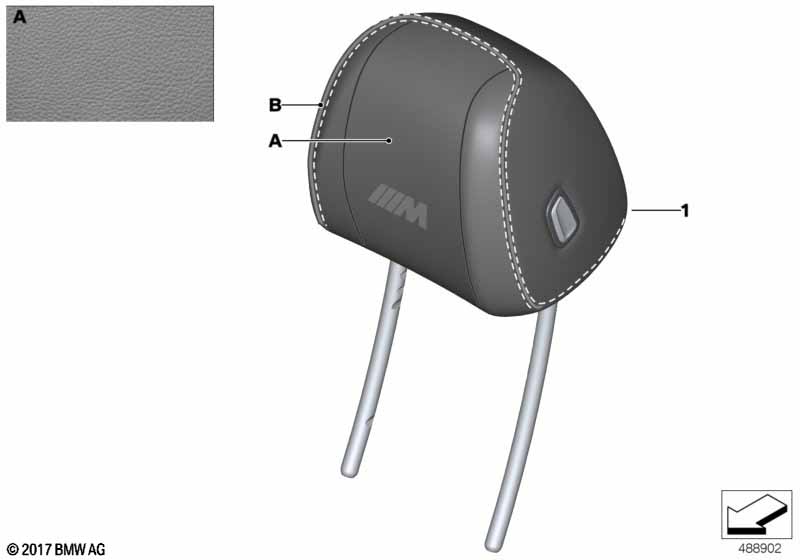

This Ind. headrest, sports seat, front technical drawing provides a detailed breakdown of the assembly for the 5 Series F90 M5 LCI M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number Leather - (B) Color spec. velours --------------------------- For vehicles with Climate-controlled seats, front and M multifunction seat |
S453A=No S4MAA=No |
||||||||
| For vehicles with Climate-controlled seats, front and M multifunction seat and special trim (without colour statement) or Individual leather extended/caramel or Indi. leather, expanded/rauch-weiss or Individual leather extended/tartufo or Indi. full leather/caramel or Indi. full leather/rauch-weiss or Indi. full leather/tartufo |
S453A=No S4MAA=No Z1XX=Yes ZACR=Yes ZAFU=Yes ZATQ=Yes ZBCR=Yes ZBFU=Yes ZBTQ=Yes |
|||||||||
| 01 | Head restraint, leather sports seat | INDIVIDUAL | 2 | 52107992285 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
