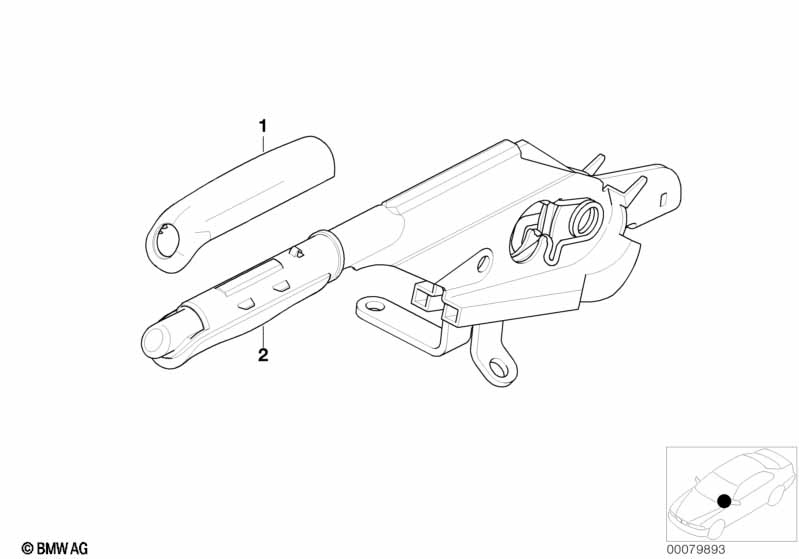

Individual wood ring f hand-brake lever for BMW 5 Series E39 528i (2000)
This Individual wood ring f hand-brake lever technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to Individual vehicles with SA 940 --------------------------- --------------------------- englischrot = kastanie |
|||||||||
| 01 | Ring f handbrake lever | BRUYERE CLUB | 1 | 34412499102 | $125.95 | +core | Shop at ECS Tuning | |||
| 01 | Ring f handbrake lever | BIRKE ANTHRAZIT | 1 | 34418009942 | $125.95 | NoS | Shop at ECS Tuning | |||
| 01 | Ring f handbrake lever | PAPPEL NATUR | 1 | 34418009952 | $104.35 | +core, NoS | Shop at ECS Tuning | |||
| 01 | Ring f handbrake lever | EIBE CLUB | 1 | 34418014116 | $104.35 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Ring f handbrake lever | BIRKE BLAU | 1 | 34418014361 | $125.95 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Handbrake lever without ring | 1 | 34417894572 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
