Individual headrest seat front, KA552 for BMW 4 Series F83 M4 LCI M4 (2020)

This Individual headrest seat front, KA552 technical drawing provides a detailed breakdown of the assembly for the 4 Series F83 M4 LCI M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.

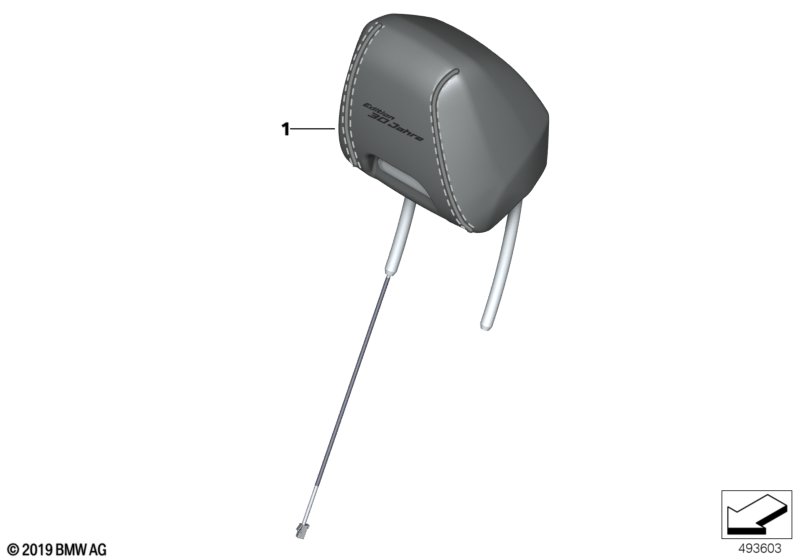

Individual headrest seat front, KA552
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
special trim (without colour statement)
Z1XX=Yes
01 Head rest leather front INDIVIDUAL 2 52107993436 NoS Shop at ECS Tuning
Notes
  • NoS = No Stock (Part centrally not stocked)
