Indi. door trim, all-leather, front for BMW 8 Series F91 M8 Convertible M8 (2025)

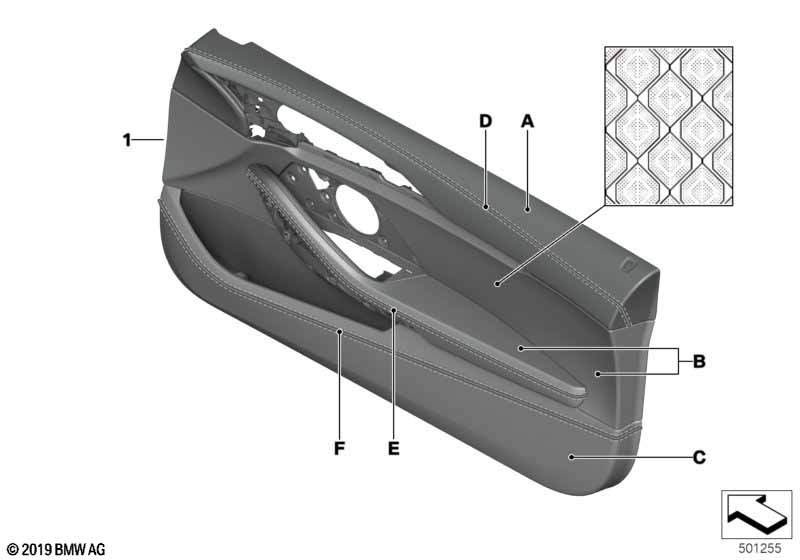

This Indi. door trim, all-leather, front technical drawing provides a detailed breakdown of the assembly for the 8 Series F91 M8 Convertible M8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) color specification leather upper section - (B) part number leather middle - (C) part number leather lower section - (D) color specification thread upper section - (E) color specification thread middle - (F) color specification thread lower section |
|||||||||
| For vehicles with special trim (without colour statement) or Indiv.grain leather/"ivory/night blue" or Indv.grain leather/"ivory white/tartufo" or Indv.grain leather/"ivory white" or Indv.grain leather/"night blue/black" or Indv.grain leather/"tartufo/black" or Indv.grain leather/"fiona red/black" or Indiv./full leather/"cognac" or Indi. full leather/"black" |
Z1XX=Yes ZBEI=Yes ZBEJ=Yes ZBEX=Yes ZBHX=Yes ZBHY=Yes ZBHZ=Yes ZBRI=Yes ZBSW=Yes |
|||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 51417996777 | NoS | Shop at ECS Tuning | ||||
| 01 | Door panel, leather, front right | INDIVIDUAL | 1 | 51417996778 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
