Individual option cover rear seat for BMW 3 Series G21 Touring 330e (2022)

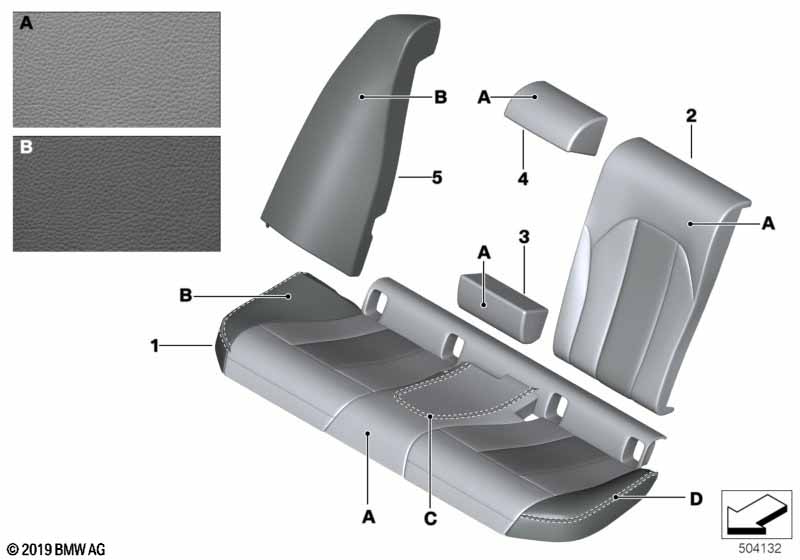

This Individual option cover rear seat technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. ------------------------------------- - (A) part number leather mirror - (B) part number leather beading - (C) color specification thread mirror - (D) color specification thread beading For vehicles with Indi. expanded leather equipment or Indi. full leather upholstery or special trim (without colour statement) |
ZA=Yes ZB=Yes Z1XX=Yes |
||||||||
| 01 | Leather cover, rear seat | INDIVIDUAL | 1 | 52207993174 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover, backrest, rear left leather | INDIVIDUAL | 1 | 52207993185 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover, backrest, rear right leather | INDIVIDUAL | 1 | 52207993186 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover, backrest, leather, center lower | INDIVIDUAL | 1 | 52207993189 | NoS | Shop at ECS Tuning | ||||
| 04 | Cover, backrest, leather, center upper | INDIVIDUAL | 1 | 52207993192 | NoS | Shop at ECS Tuning | ||||
| 05 | Side finisher, leather, left | INDIVIDUAL | 1 | 52207993207 | NoS | Shop at ECS Tuning | ||||
| 05 | Side finisher, leather, right | INDIVIDUAL | 1 | 52207993208 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring 330e Individual option cover rear seat?
- This technical diagram illustrates the Individual option cover rear seat within the Individual equipment group for the 3 Series G21 Touring 330e produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Leather cover, rear seat (Part #52207993174).
- Which models use the hardware listed in this Individual option cover rear seat?
- The hardware and components featured in the Individual option cover rear seat are specific to the 3 Series G21 Touring 330e produced during 2022. These technical specifications ensure that parts like the Leather cover, rear seat (52207993174) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual option cover rear seat assembly?
- Each item in the Individual option cover rear seat corresponds to the numbered list below the illustration. For the 3 Series G21 Touring 330e, you can identify the Leather cover, rear seat by locating its position on the schematic, which then links to the official BMW part number 52207993174 for the Individual equipment section.
