Individual headrest, leather, rear for BMW 3 Series G20 Sedan 320i (2022)

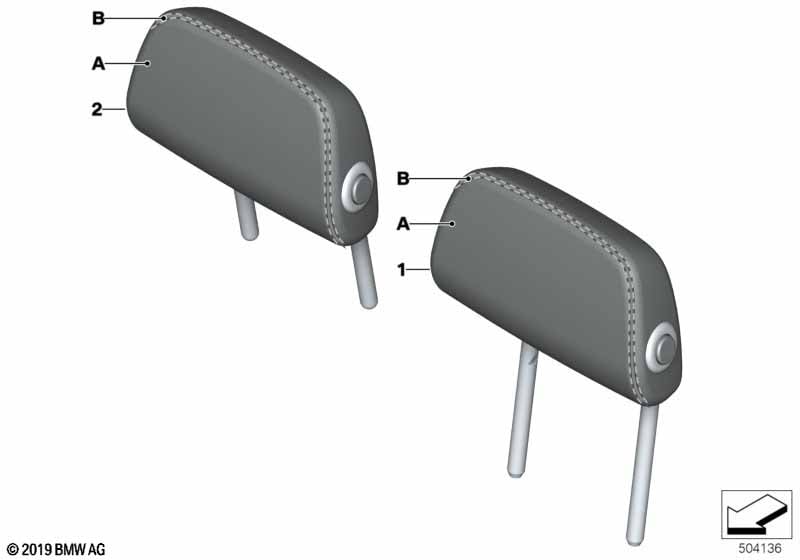

This Individual headrest, leather, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. ------------------------------------- - (A) Part number, special leather - (B) Color code for threads = suitable For vehicles with Rear-seat headrests, folding and Indi. expanded leather equipment or Indi. full leather upholstery or special trim (without colour statement) |
S5DCA=Yes ZA=Yes ZB=Yes Z1XX=Yes |
||||||||
| 01 | Folding headrest, leather, outer rear | INDIVIDUAL | 2 | 52207993217 | NoS | Shop at ECS Tuning | ||||
| 02 | Folding head restr., leather,rear cent. | INDIVIDUAL | 1 | 52207993220 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 320i Individual headrest, leather, rear?
- This technical diagram illustrates the Individual headrest, leather, rear within the Individual equipment group for the 3 Series G20 Sedan 320i produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Folding headrest, leather, outer rear (Part #52207993217).
- Which models use the hardware listed in this Individual headrest, leather, rear?
- The hardware and components featured in the Individual headrest, leather, rear are specific to the 3 Series G20 Sedan 320i produced during 2022. These technical specifications ensure that parts like the Folding headrest, leather, outer rear (52207993217) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual headrest, leather, rear assembly?
- Each item in the Individual headrest, leather, rear corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 320i, you can identify the Folding headrest, leather, outer rear by locating its position on the schematic, which then links to the official BMW part number 52207993217 for the Individual equipment section.
