Indiv. door trim panel, leather rear for BMW 3 Series G20 Sedan 330eX (2022)

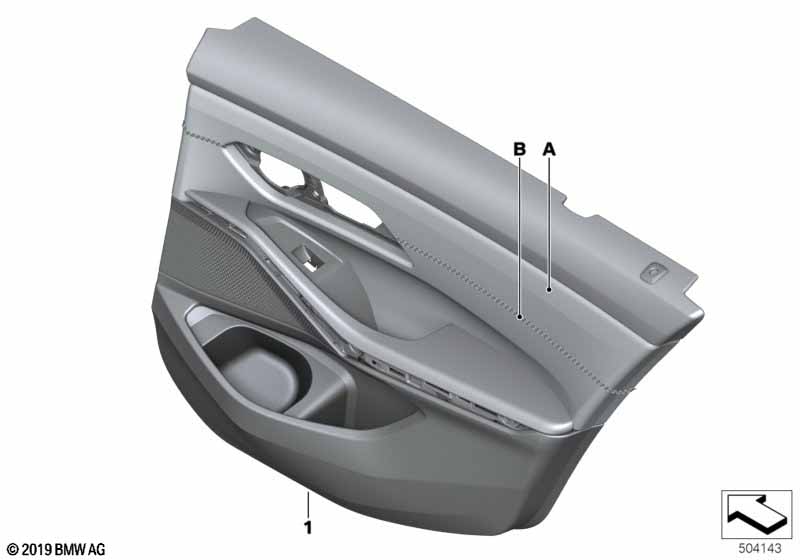

This Indiv. door trim panel, leather rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. ------------------------------------- - (A) Part number leather - (B) Colour of thread For vehicles with Individual leather-covered dashboard and Indi. expanded leather equipment or special trim (without colour statement) |
S4M5A=No ZA=Yes Z1XX=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 51427993607 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 51427993608 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 330eX Indiv. door trim panel, leather rear?
- This technical diagram illustrates the Indiv. door trim panel, leather rear within the Individual equipment group for the 3 Series G20 Sedan 330eX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Door lining leather rear left (Part #51427993607).
- Which models use the hardware listed in this Indiv. door trim panel, leather rear?
- The hardware and components featured in the Indiv. door trim panel, leather rear are specific to the 3 Series G20 Sedan 330eX produced during 2022. These technical specifications ensure that parts like the Door lining leather rear left (51427993607) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Indiv. door trim panel, leather rear assembly?
- Each item in the Indiv. door trim panel, leather rear corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 330eX, you can identify the Door lining leather rear left by locating its position on the schematic, which then links to the official BMW part number 51427993607 for the Individual equipment section.
