Individual armrest, leather, front for BMW 3 Series G20 Sedan 320d (2019)

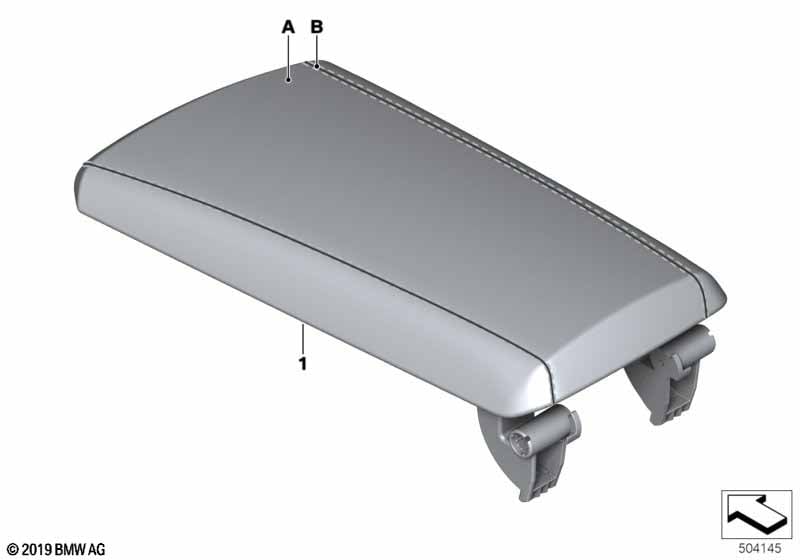

This Individual armrest, leather, front technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. ------------------------------------- - (A) Part number leather - (B) Colour of thread For vehicles with Indi. expanded leather equipment or Indi. full leather upholstery or special trim (without colour statement) |
ZA=Yes ZB=Yes Z1XX=Yes |
||||||||
| 01 | Center armrest leather+contrast stitch. | INDIVIDUAL | 1 | 51167993306 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
