Individual option dashboard full leather for BMW 3 Series G20 Sedan 330e (2022)

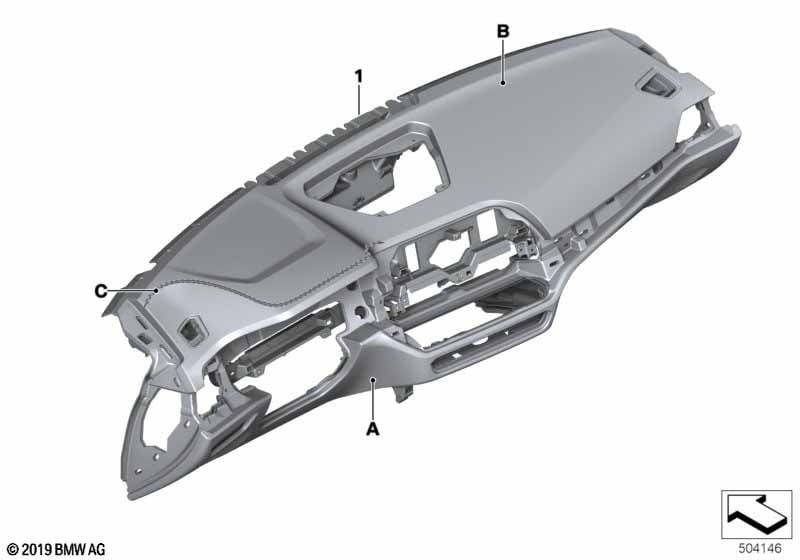

This Individual option dashboard full leather technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. ------------------------------------- - (A) color specification leather lower section - (B) color specification leather upper section - (C) color specification thread For vehicles with Indi. expanded leather equipment or Indi. full leather upholstery or special trim (without colour statement) |
ZA=Yes ZB=Yes Z1XX=Yes |
||||||||
| For vehicles with Head-up display |
S610A=No |
|||||||||
| 01 | Instrument panel leather | INDIVIDUAL | 1 | 07/2022 | 51457993230 | NoS | Shop at ECS Tuning | |||
| For vehicles with Head-up display and BMW Live dashboard Professional |
S610A=No S6U3A=Yes |
|||||||||
| 01 | Dashboard leather Head-Up Display | INDIVIDUAL | 1 | 51457998958 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Head-up display and BMW Live dashboard Professional |
S610A=Yes S6U3A=No |
|||||||||
| 01 | Dashboard leather Head-Up Display | INDIVIDUAL | 1 | 51457993232 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
