Individual floor mats, Leather border for BMW 3 Series G21 Touring 320i (2022)

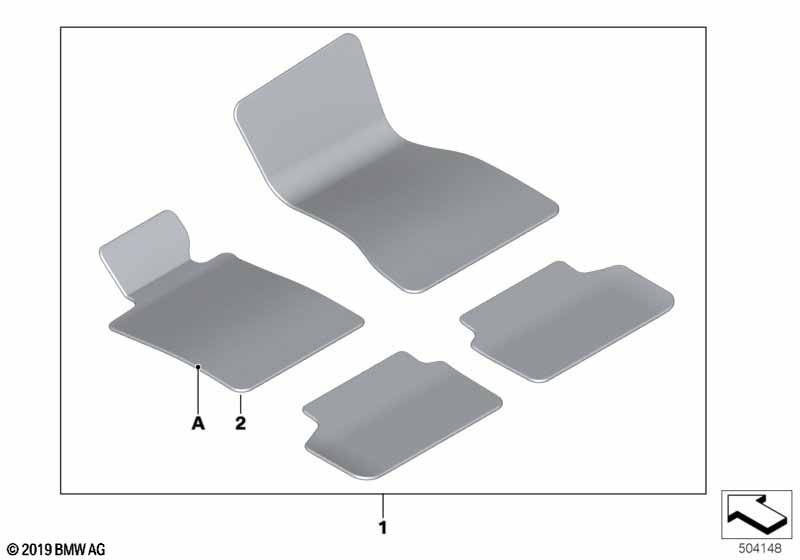

This Individual floor mats, Leather border technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. ------------------------------------- - (A) color specification edge binding For vehicles with Indi. expanded leather equipment or Indi. full leather upholstery or special trim (without colour statement) |
ZA=Yes ZB=Yes Z1XX=Yes |
||||||||
| For vehicles with Energy recovery system |
S1CEA=Yes |
|||||||||
| 01 | Set of floor mats,velours,leather framed | INDIVIDUAL 48V | 1 | 51477993011 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Energy recovery system |
S1CEA=No |
|||||||||
| 01 | Set of floor mats,velours,leather framed | INDIVIDUAL | 1 | 51477993009 | NoS | Shop at ECS Tuning | ||||
| 02 | Floor mat velours driver side | INDIVIDUAL | 1 | 51477993401 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
