Individual decor, aluminum mesh for BMW 3 Series G21 Touring 320dX (2022)

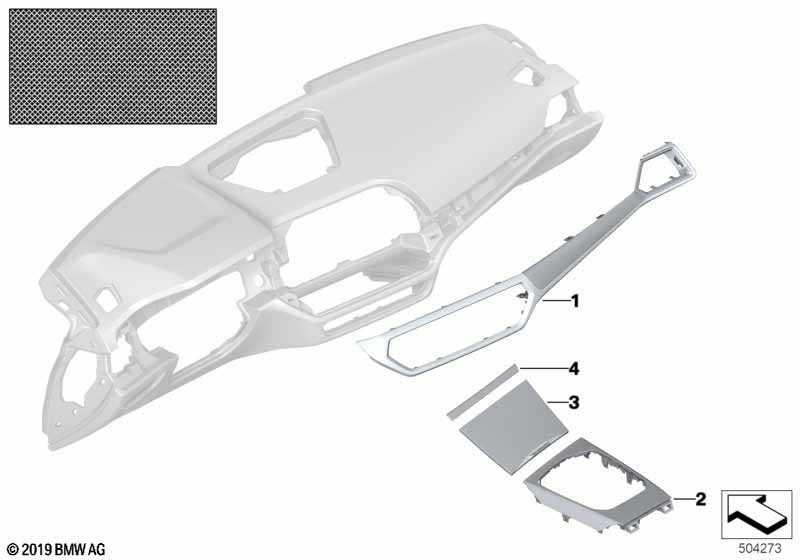

This Individual decor, aluminum mesh technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with special equipment BMW Individual or Indi.inter.trim finisher, alu.mesh |
S940A=Yes SXEDA=Yes |
||||||||
| For vehicles with Ambient interior lighting |
S4URA=Yes |
|||||||||
| 01 | Trim, instrum.panel, alu.mesh, fr.pass. | 1 | 51457993092 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Ambient interior lighting |
S4URA=No |
|||||||||
| 01 | Trim, instrum.panel, alu.mesh, fr.pass. | 1 | 51457993090 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission or Sport automatic transmission or Automatic transmission w/ shift paddles |
S205A=Yes S2TBA=Yes S2TEA=Yes |
|||||||||
| 02 | Center console trim, aluminum mesh | 1 | 51167993104 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles |
S205A=No S2TBA=No S2TEA=No |
|||||||||
| 02 | Center console trim, aluminum mesh | 1 | 51167993102 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission or Sport automatic transmission or Automatic transmission w/ shift paddles |
S205A=Yes S2TBA=Yes S2TEA=Yes |
|||||||||
| 03 | Trim, cup holder, aluminum mesh | 1 | 51167993096 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles |
S205A=No S2TBA=No S2TEA=No |
|||||||||
| 03 | Trim, cup holder, aluminum mesh | 1 | 51167993094 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission or Sport automatic transmission or Automatic transmission w/ shift paddles |
S205A=Yes S2TBA=Yes S2TEA=Yes |
|||||||||
| 04 | Trim, center stack, aluminum mesh | 1 | 51167993100 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles |
S205A=No S2TBA=No S2TEA=No |
|||||||||
| 04 | Trim, center stack, aluminum mesh | 1 | 51167993098 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring 320dX Individual decor, aluminum mesh?
- This technical diagram illustrates the Individual decor, aluminum mesh within the Individual equipment group for the 3 Series G21 Touring 320dX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Trim, instrum.panel, alu.mesh, fr.pass. (Part #51457993092).
- Which models use the hardware listed in this Individual decor, aluminum mesh?
- The hardware and components featured in the Individual decor, aluminum mesh are specific to the 3 Series G21 Touring 320dX produced during 2022. These technical specifications ensure that parts like the Trim, instrum.panel, alu.mesh, fr.pass. (51457993092) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual decor, aluminum mesh assembly?
- Each item in the Individual decor, aluminum mesh corresponds to the numbered list below the illustration. For the 3 Series G21 Touring 320dX, you can identify the Trim, instrum.panel, alu.mesh, fr.pass. by locating its position on the schematic, which then links to the official BMW part number 51457993092 for the Individual equipment section.
