Individual folding top for BMW 8 Series G14 Convertible 840dX (2020)

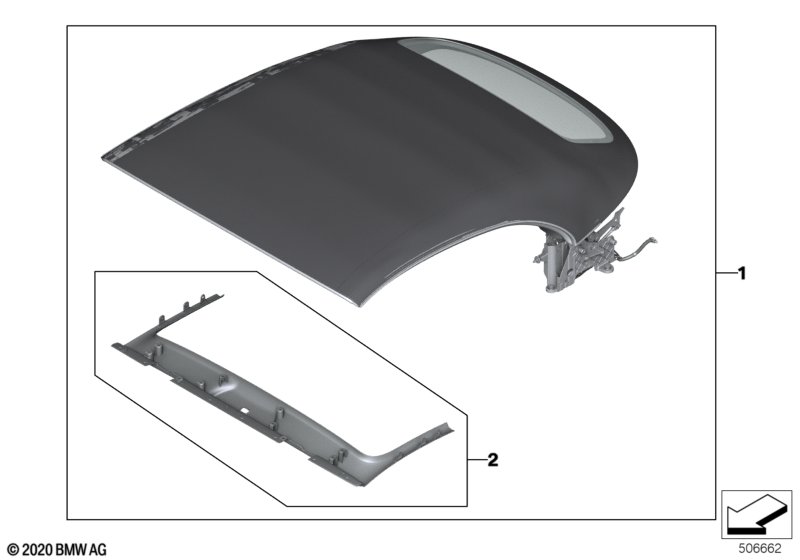

This Individual folding top technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Convertible 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Important notice! Standard series components are also installed in "Individual" vehicles. Please check in advance to confirm that the required spare part is not a series component. |
|||||||||
| 01 | Convertible top, complete | INDIVIDUAL | 1 | 54347998858 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Conv. Top, anthracite with silver accent |
S3YAA=Yes |
|||||||||
| 01 | Convertible top, complete | SILBER | 1 | 54347998545 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Conv. Top, anthracite with silver accent |
S3YAA=No |
|||||||||
| 01 | Convertible top, complete | SCHWARZ | 1 | 54347998622 | NoS | Shop at ECS Tuning | ||||
| 02 | Set, roof frame trim, leather | SCHWARZ | 1 | 54347998547 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
