Individual cover Klima-Leather, rear for BMW 4 Series G23 Convertible LCI 420i (2025)

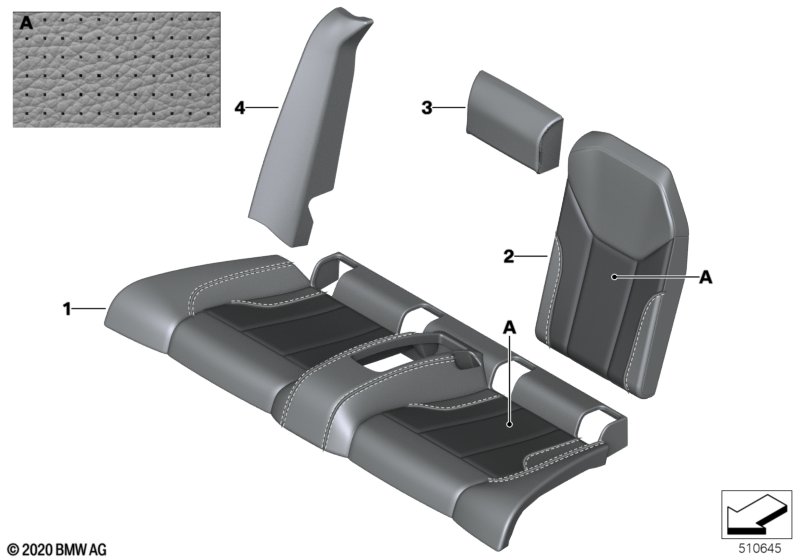

This Individual cover Klima-Leather, rear technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. ------------------------------------- - (A) part number leather mirror - (B) part number leather beading - (C) color specification thread mirror - (D) color specification thread beading For vehicles with Seat with active ventilation and Indi. expanded leather equipment or Indi. full leather upholstery |
S4FHA=Yes ZA=Yes ZB=Yes |
||||||||
| 01 | Upholstery, seat rear perforated leather | INDIVIDUAL | 1 | 52207993948 | NoS | Shop at ECS Tuning | ||||
| 02 | Upholst backrest rear perforated leather | INDIVIDUAL | 1 | 52207993969 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover, backrest, leather, center upper | INDIVIDUAL | 1 | 52207993971 | NoS | Shop at ECS Tuning | ||||
| 04 | Side finisher, leather, left | INDIVIDUAL | 1 | 52207993625 | NoS | Shop at ECS Tuning | ||||
| 04 | Side finisher, leather, right | INDIVIDUAL | 1 | 52207993626 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
