JK edition sun visor Alcantara, KA602 for BMW 8 Series G16 Gran Coupé 840i (2025)

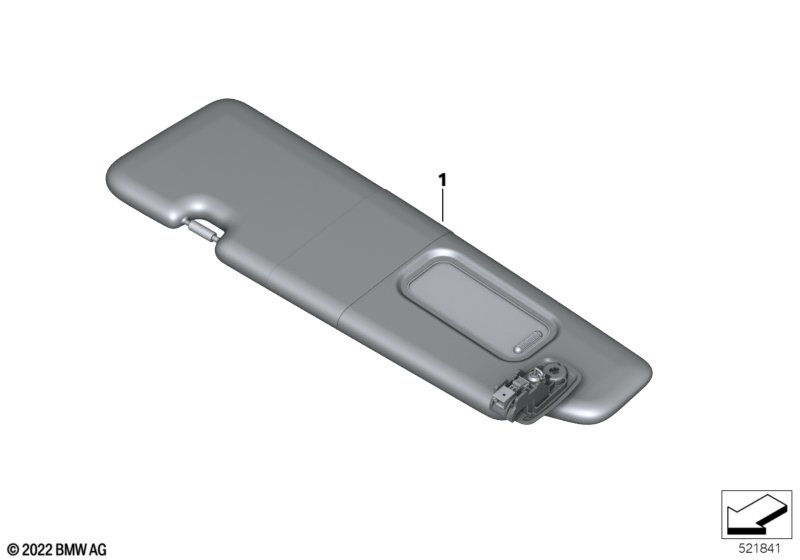

This JK edition sun visor Alcantara, KA602 technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Important notice! Standard series components are also installed in "Individual" vehicles. Please check in advance to confirm that the required spare part is not a series component. |
|||||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | Sun visor Alcantara right | JK EDITION | 1 | 51167999866 | NoS | Shop at ECS Tuning | ||||
| 01 | Sun visor Alcantara left | JK EDITION | 1 | 51167999867 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 01 | Sun visor Alcantara left | JK EDITION | 1 | 51167999867 | NoS | Shop at ECS Tuning | ||||
| 01 | Sun visor Alcantara right | JK EDITION | 1 | 51167999870 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G16 Gran Coupé 840i JK edition sun visor Alcantara, KA602?
- This technical diagram illustrates the JK edition sun visor Alcantara, KA602 within the Individual equipment group for the 8 Series G16 Gran Coupé 840i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Sun visor Alcantara right (Part #51167999866).
- Which models use the hardware listed in this JK edition sun visor Alcantara, KA602?
- The hardware and components featured in the JK edition sun visor Alcantara, KA602 are specific to the 8 Series G16 Gran Coupé 840i produced during 2025. These technical specifications ensure that parts like the Sun visor Alcantara right (51167999866) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the JK edition sun visor Alcantara, KA602 assembly?
- Each item in the JK edition sun visor Alcantara, KA602 corresponds to the numbered list below the illustration. For the 8 Series G16 Gran Coupé 840i, you can identify the Sun visor Alcantara right by locating its position on the schematic, which then links to the official BMW part number 51167999866 for the Individual equipment section.
