Indi. A, B, C-pillar trim covers for BMW 7 Series G70 740iX (2025)

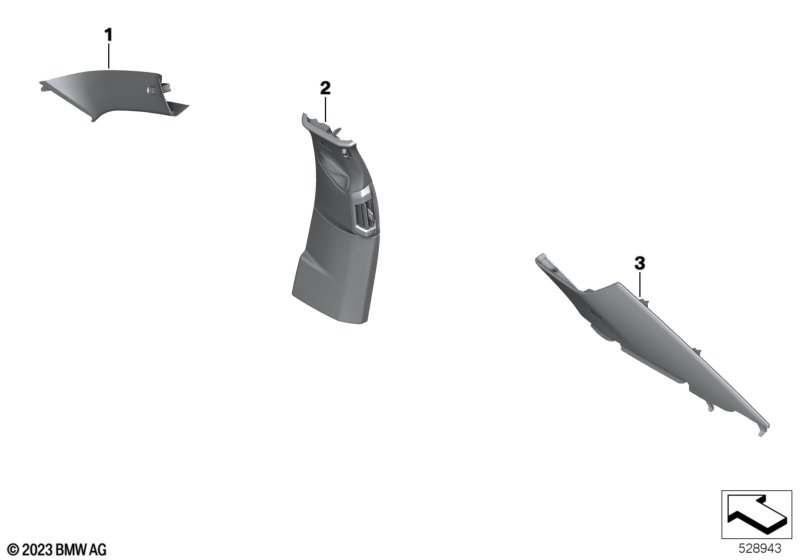

This Indi. A, B, C-pillar trim covers technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Important notice! Standard series components are also installed in "Individual" vehicles. Please check in advance to confirm that the required spare part is not a series component. For vehicles with Indi. headliner Alcantara |
SXD5A=Yes |
||||||||
| For vehicles with special trim (without colour statement) or Leather Merino/WC Exclusive, black/grey |
Z1XX=Yes ZETM=Yes |
|||||||||
| 01 | Trim, A-pillar, Alcantara, left | ELFENBEINWEISS | 1 | 51437858549 | NoS | Shop at ECS Tuning | ||||
| 01 | Trim, A-pillar, Alcantara, right | ELFENBEINWEISS | 1 | 51437858550 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. leather, Merino Caramel/Atlas gray |
Z1XX=Yes ZDIE=Yes |
|||||||||
| 02 | B-pillar trim panel Alcantara top left | CARAMEL/GRAU | 1 | 51437858629 | NoS | Shop at ECS Tuning | ||||
| 02 | B-pillar trim panel Alcantara top right | CARAMEL/GRAU | 1 | 51437858630 | NoS | Shop at ECS Tuning | ||||
| For vehicles with special trim (without colour statement) or Indi. leather, taupe gray/night blue |
Z1XX=Yes ZDIF=Yes |
|||||||||
| 02 | B-pillar trim panel Alcantara top left | TAUPEGRAU | 1 | 51437858631 | NoS | Shop at ECS Tuning | ||||
| 02 | B-pillar trim panel Alcantara top right | TAUPEGRAU | 1 | 51437858632 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Leather Merino/WC Exclusive, black/grey |
S416A=Yes Z1XX=Yes ZETM=Yes |
|||||||||
| 03 | C-pillar trim panel, Alcantara, left | ELFENBEINWEISS | 1 | 51437858555 | NoS | Shop at ECS Tuning | ||||
| 03 | C-pillar trim panel Alcantara, right | ELFENBEINWEISS | 1 | 51437858556 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and special trim (without colour statement) or Leather Merino/WC Exclusive, black/grey |
S416A=No Z1XX=Yes ZETM=Yes |
|||||||||
| 03 | C-pillar trim panel, Alcantara, left | ELFENBEINWEISS | 1 | 51437858553 | NoS | Shop at ECS Tuning | ||||
| 03 | C-pillar trim panel Alcantara, right | ELFENBEINWEISS | 1 | 51437858554 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
