Indi. front seat, rear panel for BMW 7 Series G70 750eX (2025)

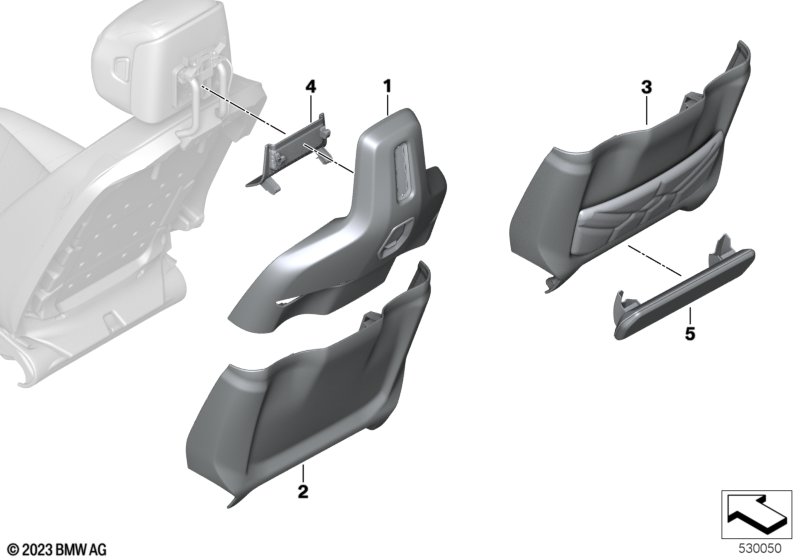

This Indi. front seat, rear panel technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ---------------------------------------- Important notice! Standard series components are also installed in "Individual" vehicles. Please check in advance to confirm that the required spare part is not a series component. |
|||||||||
| For vehicles with Travel & Comfort Rail System and Multifunction seat driver and passenger and special trim (without colour statement) or Indi. leather, Merino Caramel/Atlas gray or Indi. leather, taupe gray/night blue |
S4FLA=Yes S4FMA=Yes Z1XX=Yes ZDIE=Yes ZDIF=Yes |
|||||||||
| 01 | Rear panel comfort seat leather top | INDIVIDUAL | 2 | 52107858267 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Travel & Comfort Rail System and special trim (without colour statement) or Indi. leather, Merino Caramel/Atlas gray or Indi. leather, taupe gray/night blue |
S4F4A=No S4FLA=No Z1XX=Yes ZDIE=Yes ZDIF=Yes |
|||||||||
| 01 | Rear panel comfort seat leather top | INDIVIDUAL | 2 | 52107858264 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Multifunction seat driver and passenger and special trim (without colour statement) or Indi. leather, Merino Caramel/Atlas gray or Indi. leather, taupe gray/night blue |
S4FMA=Yes Z1XX=Yes ZDIE=Yes ZDIF=Yes |
|||||||||
| 02 | Rear panel comfort seat leather bottom | INDIVIDUAL | 2 | 52107858270 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and special trim (without colour statement) or Indi. leather, Merino Caramel/Atlas gray or Indi. leather, taupe gray/night blue |
S4F4A=Yes S4FMA=Yes Z1XX=Yes ZDIE=Yes ZDIF=Yes |
|||||||||
| 03 | Rear panel comfort seat leather bottom | INDIVIDUAL | 2 | 52107858273 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and special trim (without colour statement) or Indi. leather, Merino Caramel/Atlas gray or Indi. leather, taupe gray/night blue Leather |
S4F4A=Yes S4FMA=Yes Z1XX=Yes ZDIE=Yes ZDIF=Yes |
|||||||||
| 04 | Decorative trim backrest front | INDIVIDUAL | 2 | 52107858276 | Shop at ECS Tuning | |||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and special trim (without colour statement) or Indi. leather, Merino Caramel/Atlas gray or Indi. leather, taupe gray/night blue Leather |
S4F4A=Yes S4FMA=No Z1XX=Yes ZDIE=Yes ZDIF=Yes |
|||||||||
| 04 | Decorative trim backrest front | INDIVIDUAL | 2 | 52107858276 | Shop at ECS Tuning | |||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and special trim (without colour statement) or Indi. leather, Merino Caramel/Atlas gray or Indi. leather, taupe gray/night blue Leather |
S4F4A=No S4FMA=Yes Z1XX=Yes ZDIE=Yes ZDIF=Yes |
|||||||||
| 04 | Decorative trim backrest front | INDIVIDUAL | 2 | 52107858276 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger and special trim (without colour statement) or Indi. leather, Merino Caramel/Atlas gray or Indi. leather, taupe gray/night blue Leather |
S4F4A=Yes S4FMA=Yes Z1XX=Yes ZDIE=Yes ZDIF=Yes |
|||||||||
| 05 | Footrest | INDIVIDUAL | 1 | 52107858261 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 750eX Indi. front seat, rear panel?
- This technical diagram illustrates the Indi. front seat, rear panel within the Individual equipment group for the 7 Series G70 750eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Rear panel comfort seat leather top (Part #52107858267).
- Which models use the hardware listed in this Indi. front seat, rear panel?
- The hardware and components featured in the Indi. front seat, rear panel are specific to the 7 Series G70 750eX produced during 2025. These technical specifications ensure that parts like the Rear panel comfort seat leather top (52107858267) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Indi. front seat, rear panel assembly?
- Each item in the Indi. front seat, rear panel corresponds to the numbered list below the illustration. For the 7 Series G70 750eX, you can identify the Rear panel comfort seat leather top by locating its position on the schematic, which then links to the official BMW part number 52107858267 for the Individual equipment section.
