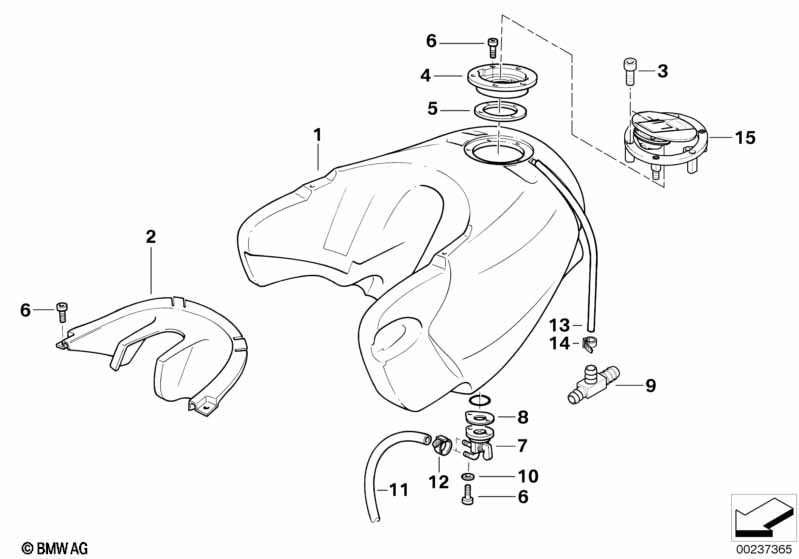

E169 (F 650, F 650 ST) F 650 97 (0162) Fuel tank mounting parts
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank | 1 | 16112328488 | $379.43 | +core | ||||
| 02 | Front black trim panel | 1 | 16112346013 | ||||||
| 03 | Fillister-head screw | M5X30 | 3 | 16112346177 | $2.90 | ||||
| 03 | Fillister-head screw | M5X16 A2-70 | 3 | 16112346178 | $1.19 | ||||
| 04 | Filler tube | D=23,5 MM | 1 | 16112328475 | $38.01 | ||||
| 04 | Filler tube | D=28 MM | 1 | 16112346170 | |||||
| 05 | Gasket | 1 | 16112328477 | $26.32 | ENDED | ||||
| 06 | Hex bolt | M6X16 | 2 | 12132345541 | $0.87 | ||||
| 06 | Screw | M6X16 | 2 | 16112345083 | $0.87 | ||||
| 07 | Fuel tap | 1 | 16112345127 | $31.79 | +core | ||||
| 08 | O-ring | 23,4X3,53 | 1 | 16112346026 | $3.83 | ENDED | |||
| 08 | O-ring | 23,4 X 3,53 | 1 | 11317690476 | $2.46 | ||||
| 09 | NIpple | 2 | 16112345692 | $3.04 | |||||
| 10 | Wave washer | 6,4X11X0,5 | 2 | 16112345085 | $0.55 | ||||
| 11 | Hose | 7,5X13 | X | 16122345065 | $13.09 | ||||
| 12 | Clamp | 11,9 | 2 | 16112345077 | $1.39 | ||||
| 13 | Hose | 5,5X10X1500 | X | 13712345164 | $13.31 | ENDED | |||
| 13 | Hose running meter | 5X8 | X | 16111342049 | $13.06 | ||||
| 14 | Clamp | 9,1 | 7 | 16112345078 | $1.39 | ||||
| 15 | Filler cap | 1 | 16112346374 | $203.81 | +core | ||||
| 16 | Fuel tap gasket set | 1 | 16112345108 | $12.44 | ENDED |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
