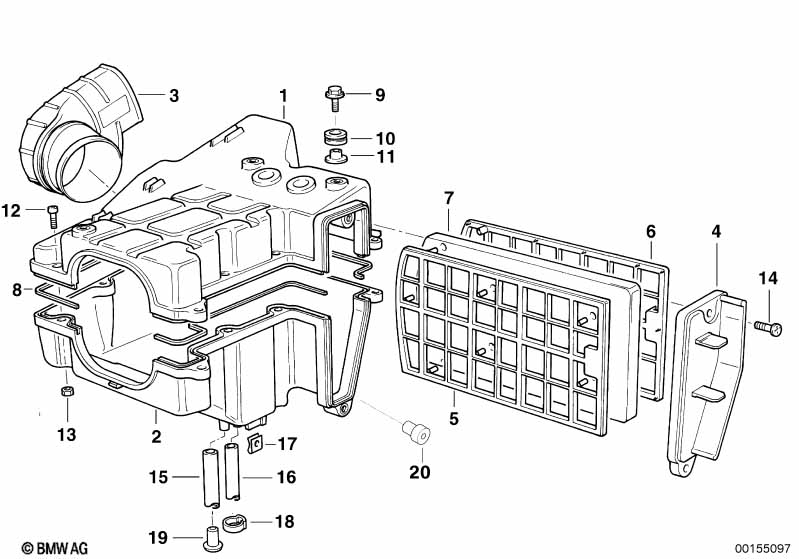

E169 (F 650, F 650 ST) F 650 ST 97 (0163,0168) Intake silencer / Filter cartridge Intake silencer / Filter cartridge

Intake silencer / Filter cartridge Intake silencer / Filter cartridge
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Air cleaner housing top 80 DB 1 13712345143 $53.60 ENDED
02 Air cleaner housing bottom 1 13712345011 $60.27
only in conjunction with
-- Insert M6 1 13712345029 $2.64 ENDED
03 Suction tube 1 13712345013 $24.01 ENDED
04 Cover 1 13712345012 $5.05
05 Bracket front 1 13722345018 $10.97
06 Bracket rear 1 13722345019 $10.97 ENDED
07 Air filter element 1 13722345027 $10.61
08 Gasket 750MM 1 13712345028 $2.58
09 Hex bolt M6X20 3 13712343300 $0.87
10 Rubber grommet 3 13712345030 $0.84
11 Bush 3 13712345031 $5.37
12 Screw M5X20 9 13712345044 $0.87
13 Hex nut M5 9 62112346124 $0.55
14 Hex bolt M6X20 2 13712343300 $0.87
15 Hose 7,5X13 X 16122345065 $13.09
16 Hose 5,5X10X1500 X 13712345164 $13.31 ENDED
16 Hose running meter 5X8 X 16111342049 $13.06
17 Body nut M6 2 17112345061 $2.87
18 Hose clamp D=10 1 17112345070 $1.39
19 Blind plug 1 13712343319 $1.19
20 Insert M6 2 13712345029 $2.64 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
