E169 (F 650, F 650 ST) F 650 ST 97 (0163,0168) Mixture control

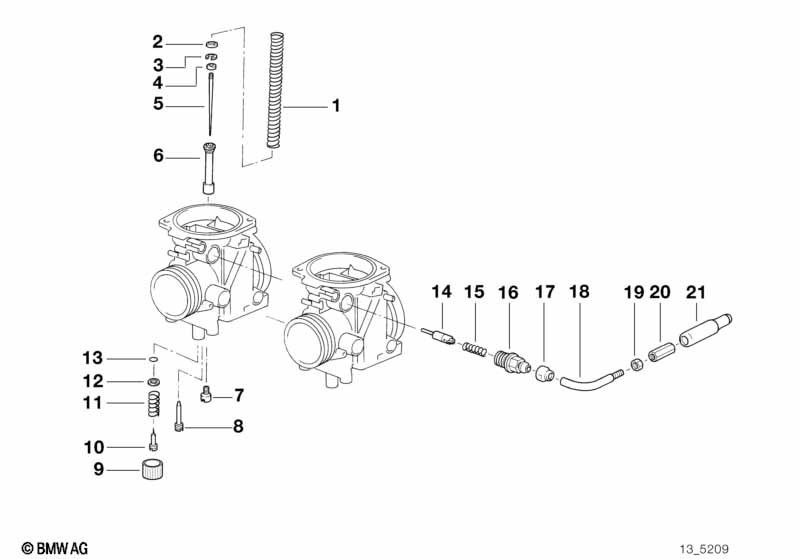

Mixture control
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Spring 2 13112343375 $6.38
02 Washer 2 13112343372 $2.94
03 Lock Ring 2 13112343373 $2.68 ENDED
04 Ring 2 13112343380 $2.68 ENDED
05 Nozzle needle 2 13112343397 $12.00
06 Venturi 2 13112343395 $29.73
07 Main jet 2 13112343396 $12.44
08 Idling jet 2 13112343407 $12.00
For vehicles with
Switzerland version

=Yes
08 Idling jet 2 13112343318 $11.48 ENDED
09 Fixing plug 2 13112343439 $16.07
10 Idling mixture screw 2 13112343409 $7.94 ENDED
11 Spring 2 13112343410 $2.68 ENDED
12 Washer 2 13112343411 $1.13 ENDED
13 O-ring 2 13112343412 $1.86
14 Piston 1 13112343408 $8.63
15 Spring 1 13112343421 $2.03 ENDED
16 Guide bush 1 13112343422 $5.83
17 Cap 1 13112343423 $2.68 ENDED
18 Guide cable 1 13112343425 $9.15 ENDED
19 Nut 1 13112343426 $2.68
20 Adjusting nut 1 13112343377 $3.99
21 Cap 1 13112343424 $3.42
Notes
  • ENDED = the part has been discontinued (no longer available).
