E169 (F 650, F 650 ST) F 650 ST 97 (0163,0168) Carburetor mounting parts

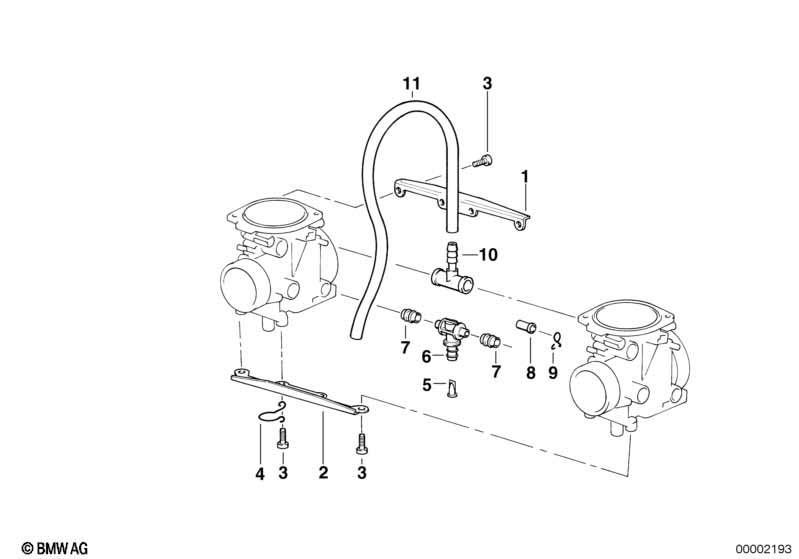

Carburetor mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting rail 1 13112343415 ENDED
02 Supporting rail 1 13112343390 $12.91 ENDED
03 Fillister head screw M5X12 8 13112343391 $1.64 ENDED
04 Clip 1 13112343427 $7.16
05 Fuel filter 1 13112343430 $12.65 ENDED
06 Distribution piece 1 13112343419 $10.08
07 Sealing sleeve 2 13112343418 $5.13
08 Cap 1 13112343429 $3.42
09 Clip 1 13112343428 $2.68 ENDED
10 Distribution piece 1 13112343420 $5.60 ENDED
11 Hose 1 13112343416 $16.39 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
