R13 (F 650 GS, GS Dakar) F 650 GS 04 (0175,0185) Fork slider

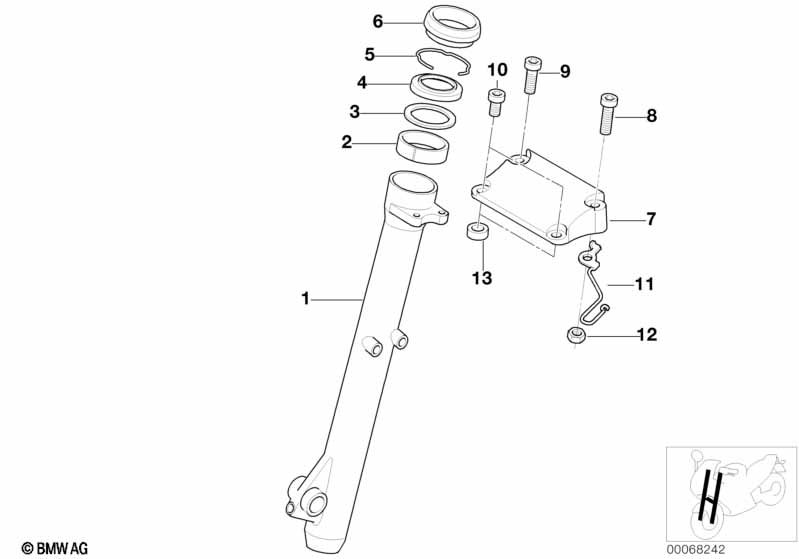

Fork slider
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Slider tube left 1 31427678481 $382.18 +core
01 Slider tube right 1 31427678482 $382.18 +core
02 Guide bush 2 31427659780 $9.87
03 Shim 2 31422312839 $4.42
04 Gasket ring 2 31422312838 $11.47
05 Supporting ring 2 31422312837 $2.51
06 Cup 2 31427681274 $29.84
07 Anti-roll bar, silver 1 31427729244 +core
08 Pan-head machine screw, rear right M8X50 1 31427660425 $4.31
08 Pan-head machine screw, rear left M8X65 1 31427660426 $6.66
09 Pan-head machine screw, rear right M8X50 1 31427660425 $4.31
10 Cylinder screw, front M8X30 2 31427655776 $3.41
11 Brake pipe bracket 1 34327655401 $10.48
For vehicles with
Anti block system (ABS)

X524A=Yes
11 Brake pipe bracket ABS 1 34327651549 $10.48
13 Spacer, silver GS DAKAR 4 31428520150
Notes
  • +core = plus core charge (possibility of a return of the old part)
