R13 (F 650 GS, GS Dakar) F 650 GS 04 (0175,0185) Fork bridge

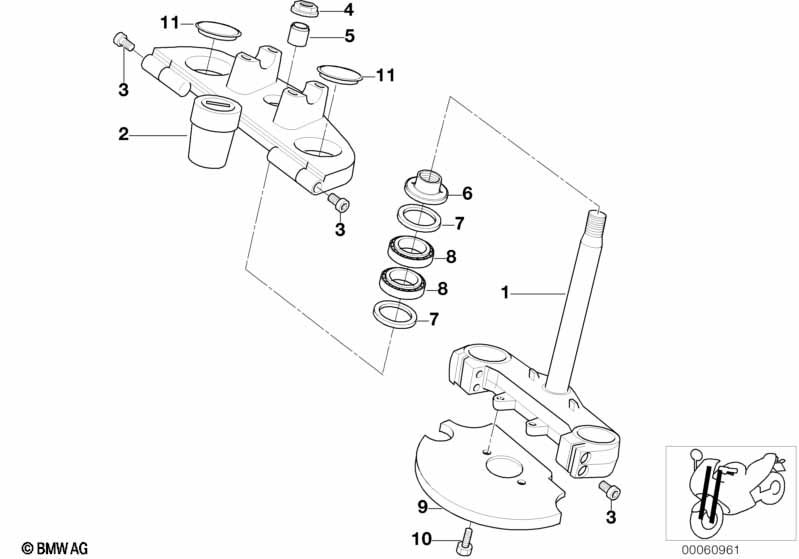

Fork bridge
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fork brace, black, lower 1 31427726772 +core
02 Fork brace, silver, upper 1 31428523492
03 ISA screw M8X30 8 07129904815 $2.80
04 Collar nut 1 31422311639 $8.67
05 Counter pipe 1 31427650008 $13.65
06 Adjusting ring 1 31427650006 $57.02 +core
07 Ring 2 31421234509 $3.03
08 Tapered roller bearing 28X52X16 2 31427663941 $68.65 +core
09 Cover 1 46632350003 $8.18
10 Fillister-head screw M6X16-Z2 2 07129902771 $0.60
11 Cap 2 31422312712 $4.28
Notes
  • +core = plus core charge (possibility of a return of the old part)
