R13 (F 650 GS, GS Dakar) F 650 GS 04 (0175,0185) Wheel cover officials utility

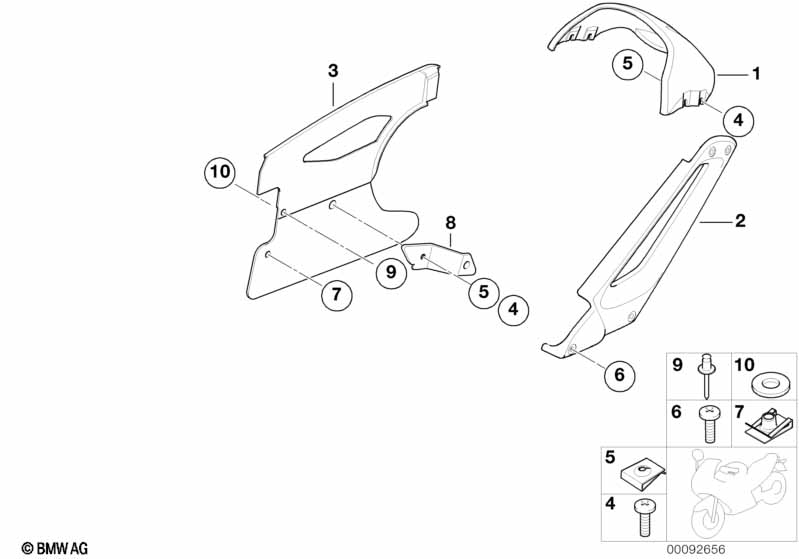

Wheel cover officials utility
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Wheel cover BLACK 1 46622346386 $22.56 +core
02 Bracket, wheel cover, bottom left BLACK 1 46627672364 $23.41
03 Bracket, wheel cover, bottom right BEHÖRDE 1 46627665461
04 Fillister head screw M5X16-A2-80-MK 5 06327657949 $0.96
05 Plug-in nut M5 5 46637651465 $1.29
06 Oval-head screw with anti-rotation lock M6X16 5 46637659459 $1.93
07 C-clip nut M6-ZNS3 1 51127070202 $1.00
08 Bracket for chain guard BEHÖRDE 1 46627664367
09 Blind rivet SCHWARZ 11 54128144789 $0.56
10 Washer 9X4,3X0,8-A2 11 07119904924
Notes
  • +core = plus core charge (possibility of a return of the old part)
