R13 (F 650 GS, GS Dakar) F 650 GS 04 (0175,0185) Tail trim

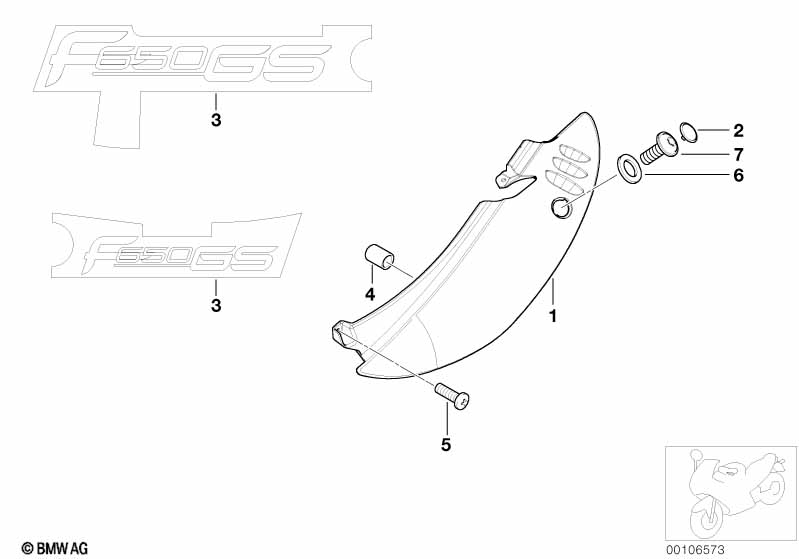

Tail trim
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rer left lateral body part DEEP-BLACK 1 46637652687 $178.78 ENDED, +core
01 Rear right lateral body part DEEP-BLACK 1 46637652688 $178.78 ENDED, +core
01 Rer left lateral body part GELB 2 1 46637673213 $178.78 ENDED
01 Rear right lateral body part GELB 2 1 46637673214 $178.78 ENDED
01 Rer left lateral body part EISBERGSILBER 1 46637681885 $178.78 ENDED
01 Rear right lateral body part EISBERGSILBER 1 46637681886 $178.78 ENDED
02 Covering cap RED 2 2 46637652594 $14.78 ENDED
02 Covering cap DEEP-BLACK 2 46637652689 $14.78 ENDED
02 Covering cap GELB 2 2 46637673225 $14.78 ENDED
02 Covering cap EISBERGSILBER 2 46637681895 $14.78 ENDED
For vehicles with
tief-schwarz, Zierl --/--

U715=Yes
03 Sticker left SILBER/ORANGE 1 46637681911 $32.80
03 Sticker right SILBER/ORANGE 1 46637681912 $34.85
For vehicles with
eisberg-silber metallic
or
rot 2, Zierl --/--
or
gelb 2, Zierl --/--

M925=Yes

U761=Yes

U829=Yes
03 Sticker left SCHWARZ/GRAU 1 46637681887 $32.80
03 Sticker right SCHWARZ-GRAU 1 46637681888 $34.85
04 Bump stop 2 46637650963 $3.84
05 Oval-head screw with anti-rotation lock M6X16 4 46637659459 $1.93
06 Washer 10-200HV-ZNNIV 2 07119907114
07 Torx bolt M8X16MK 2 07129903481 $2.90
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
