R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Fuel distributor/Pressure regulator

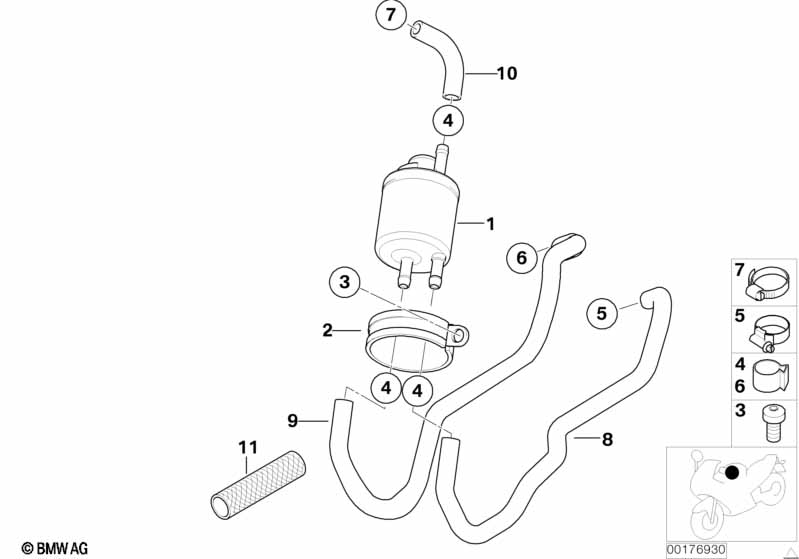

Fuel distributor/Pressure regulator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuel filter with pressure regulator 1 13537669776 $147.98 +core
02 Bracket fuel strainer D=55MM 1 13321741654 $5.22
03 ISA screw M6X20-8.8-ZNNIV 1 07129901130 $0.38
04 Hose clamp 13,2-15,7 3 34321156893 $0.58
05 Hose clamp 12,3-14,3 1 16121177210 $2.90
06 Hose clamp 15,3-18,5 1 32411131346 $0.80
07 Hose clamp L12-15 1 07129952104 $1.18
08 Inlet fuel hose 1 13532345829 $25.72
09 Retour fuel hose 1 13532345830 $41.17
10 Fuel hose 1 13532345229 $17.65
11 Protective hose 2 13537654598 $14.59
Notes
  • +core = plus core charge (possibility of a return of the old part)
