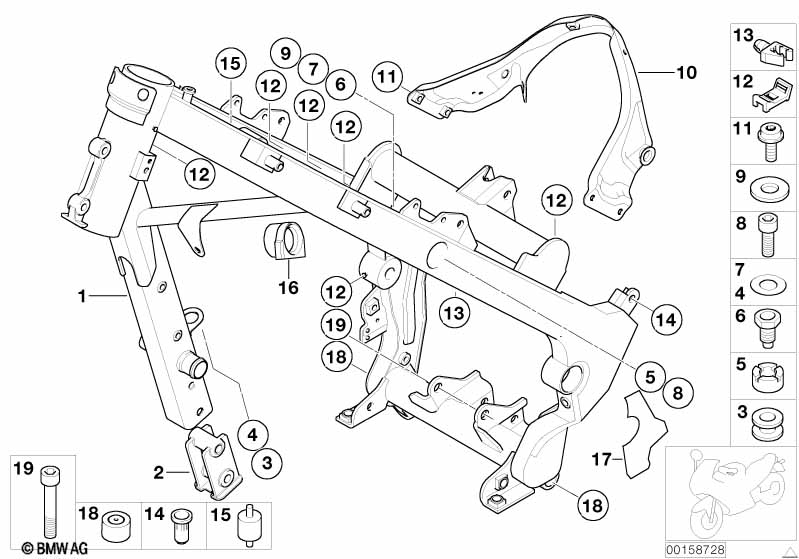

R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Frame

Frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Main frame 1 08/2001 46517691333 $1656.12 +core
only in conjunction with
-- Chain tensioning pulley DI=10MM 1 08/2001 46517691335 $91.85
01 Main frame 1 46517691333 $1656.12 +core
01 Main frame 1 46518521843 +core
only in conjunction with
-- Chain tensioning pulley DI=10MM 1 46517691335 $91.85
02 Blind plug 1 46517650968 $22.99
03 Rubber grommet 1 46631451277 $1.40
04 Insert 1 46631451278 $0.87
05 Counter nut 2 46517652156 $13.11
06 Sleeve 2 46517652158 $15.44
07 Reinforcement 12X31MM 2 46517652153
08 ISA screw M10X55 2 07129907092
09 Washer ZNS3 2 07119904198 $0.45
10 Holder frame 1 52537674585 +core
11 ISA screw M6X16-Z1 4 07129902330 $0.60
12 holder for cable tie NATUR 10 61137651632 $0.58
12 Cable retainer SCHWARZ 10 61137660211 $0.87
13 Bracket brake pipe right 1 34327654660 $2.80
14 Riveted nut M6 11 46512331720 $1.42
15 Rubber Mounting 2 61212305050 $5.39
16 Distance rubber 2 16112350066 $7.18
17 Right protection foil 1 46517660858 $13.21 ENDED
17 Left protection foil 1 46517660859 $12.33 ENDED
18 Blind plug 2 46517658421 $1.19
19 Fillister-head screw M10X95 ZNS3 1 07119906725
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
