R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Rear footrests

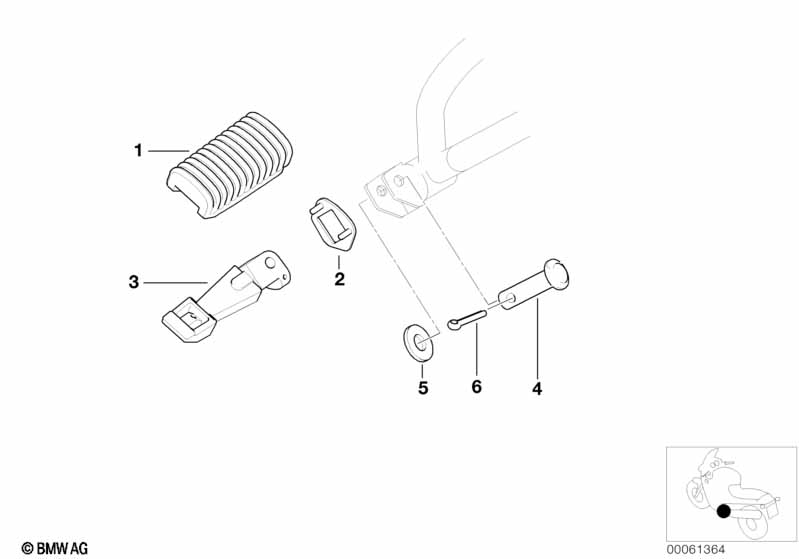

Rear footrests
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Footrest rubber 2 46712310401 $13.26
02 Thrust washer, left 1 46717687107 $3.35
02 Thrust washer, right 1 46717687108 $3.35
03 Footrest, rear left 1 46712310403 $40.75 +core
03 Footrest, rear right 1 46712310404 $32.60 +core
04 Pin D=8MM/L=36MM 2 46717717831
05 Washer A8,4-ZNS 2 07119931019 $0.40
06 Split pin 2X16 2 07119905230
Notes
  • +core = plus core charge (possibility of a return of the old part)
