R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Side stand

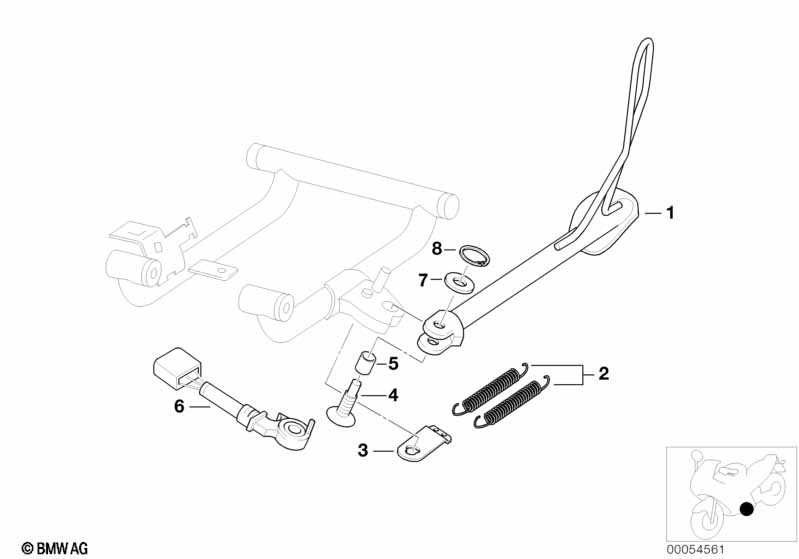

Side stand
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Side stand 1 46537669902 $125.39 +core
02 Tension spring 2 46532345275 $5.68
03 Holder 1 46532335449 $5.13
04 Countersunk head screw M10 1 46532335323 $9.15
05 Bushing 1 46537663055 $9.16
06 Switch, kickstand L=530MM 1 61317654603 $145.63 ENDED, +core
06 Switch, kickstand 1 61328535708
only in conjunction with
-- Adapter lead L=530MM 1 61128523365
-- Lock Ring 6X0,7 1 07119903479 $0.81
-- Washer 6-200 1 07119904427 $0.21
07 Washer 6-200 1 07119904427 $0.21
08 Lock Ring 6X0,7 1 07119903479 $0.81
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
