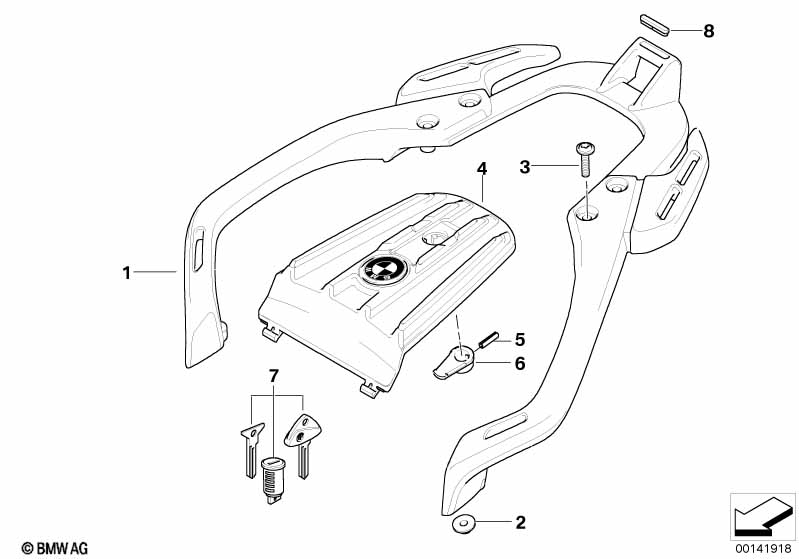

R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Handle with luggage support

Handle with luggage support
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Handle rear SILBER 1 46547678924 $183.29
01 Handle rear SCHWARZ 1 46548527521 +core
02 Hex nut AM5-8-ZNNIV SI 4 07129904319 $0.36
03 ISA screw M6X35 4 46547684770 $5.12
04 Cover f luggage support SILBER 1 46547678918 $104.01 +core
05 Roll pin 2,5X18 1 07119941417 $0.62
06 Catch 1 46632313938 $1.82
07 Lock cylinder with key 1 51252313284 $24.00 +core
07 Lock (with key code) 1 51252313285 $66.25 +core
08 Distance rubber 1 46547678929 $9.99
Notes
  • +core = plus core charge (possibility of a return of the old part)
