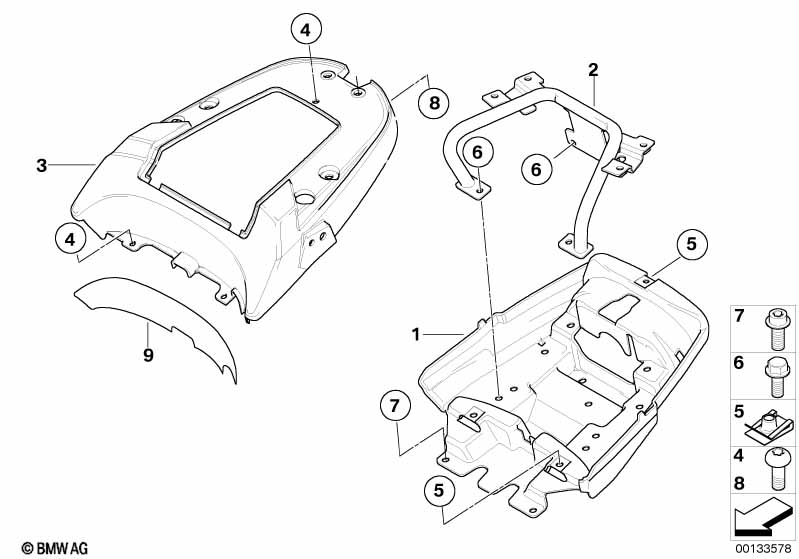

R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Tail part

Tail part
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Wheel cover, rear section, rear 1 46627678906 $36.65
02 Tubular frame 1 46547678905 $104.59 +core
03 Tail part upper SILBER 1 46547678917 $89.60
04 Binding head screw M5X16-A2-80 3 06327651212 $0.82
05 Flat nut M5 3 46637658638 $1.12
06 Torx-bolt with washer M6X20-U1-8.8 4 07129905516 $0.96
07 Fillister-head screw M6X16-Z2 2 07129902771 $0.60
09 Adhesive film f tail trim 1 46547656908 $14.76
Notes
  • +core = plus core charge (possibility of a return of the old part)
