R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Trim panel upper part

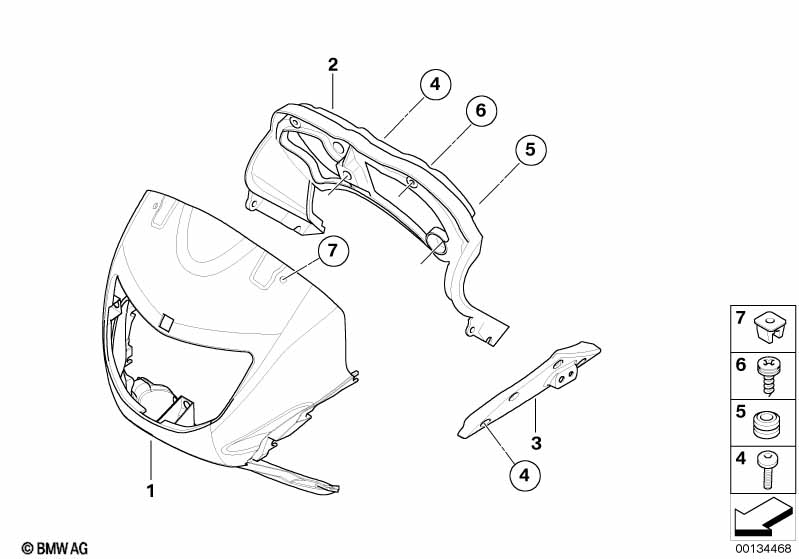

Trim panel upper part
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cockpit trim panel 1 46637687553 $43.69 +core
only in conjunction with
-- Joint sleeve 3 63127687707 $0.87
02 Instruments cover 1 46637678909 $27.54 +core
03 Covering left SILVER 1 46632345733 $21.01 +core
03 Covering right SILVER 1 46632345734 $21.01
04 Binding head screw M5X16-A2-80 9 06327651212 $0.82
05 Rubber grommet 8X18X12MM 3 62217670749 $2.11
06 Sheet metal screw ST3,5X19 2 51161978034 $0.39
07 Expanding nut 2 46637667284 $2.80
Notes
  • +core = plus core charge (possibility of a return of the old part)
