R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Fairing side section

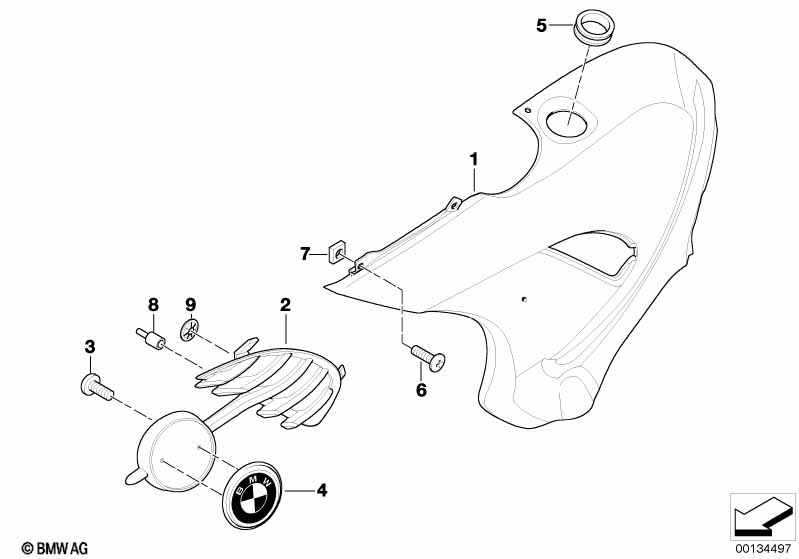

Fairing side section
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trim panel left BLAU/WEISSALU 1 46637683753 $527.90 ENDED
01 Trim panel right BLAU/WEISSALU 1 46637683754 $527.90 ENDED
02 Grid with plaque support, left 1 46637678931 $42.29
only applies to
02 Grid with plaque support, right 1 46637678932 $42.29
only applies to
-- Adhesive pad X 46638564491
03 Oval-head screw with washer 2 07149141517 $0.46
04 Badge D=58MM 2 51148164924 $28.78 +core
05 Grommet LINKS 1 46637651035 $5.22
06 Fillister head screw M5X16-A2-80-MK 2 06327657949 $0.96
07 Plug-in nut M5 2 46637651465 $1.29
08 Bump stop 1 46637650963 $3.84
09 Circlip D=4MM 2 51418144600 $0.40
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
