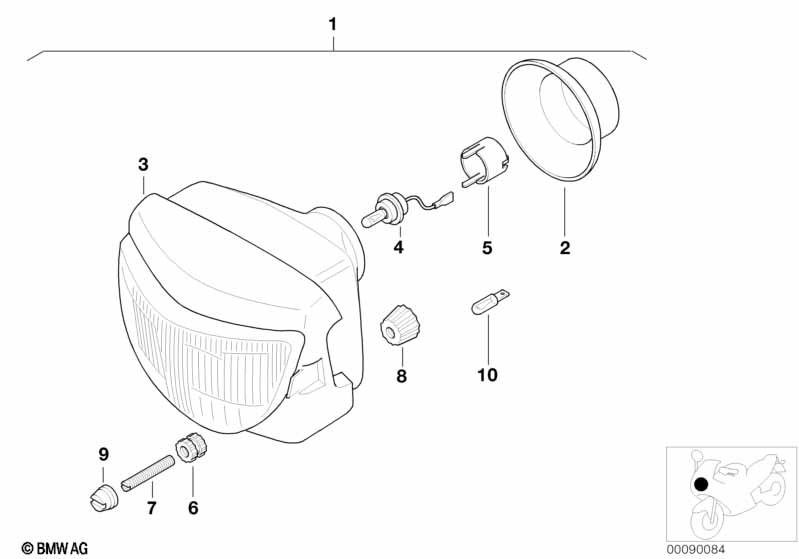

R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Headlight

Headlight
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Headlight 1 63127691001 +core
For vehicles with
Headlight left asymetric

X321A=Yes
01 Headlight LV / LHT 1 63127691002 $226.22 +core
02 Headlight cover 1 63127650105 $6.92
03 Cover 1 63127650158 $24.93
04 Bulb H4 1 63121354619 $13.63
05 Supporting ring 1 63127650157 $4.00
06 Set-nut, height adjustment 1 63122346560 $2.87
06 Adjusting nut, cross adjustment 2 63122346561 $2.87
07 Adjusting screw, cross adjustment 2 63122346562 $3.93
07 Set-screw, height adjustment LG=83MM 1 63127655938 $3.51
08 Rotary knob HÖHE 1 63122346563 $2.68
08 Rotary knob, cross adjustment 2 63127654274 $2.52
09 Joint sleeve 3 05/2004 63121369833 $2.34
10 Longlife bulb 5W 1 63217160797 $1.96
Notes
  • +core = plus core charge (possibility of a return of the old part)
