R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Rear light

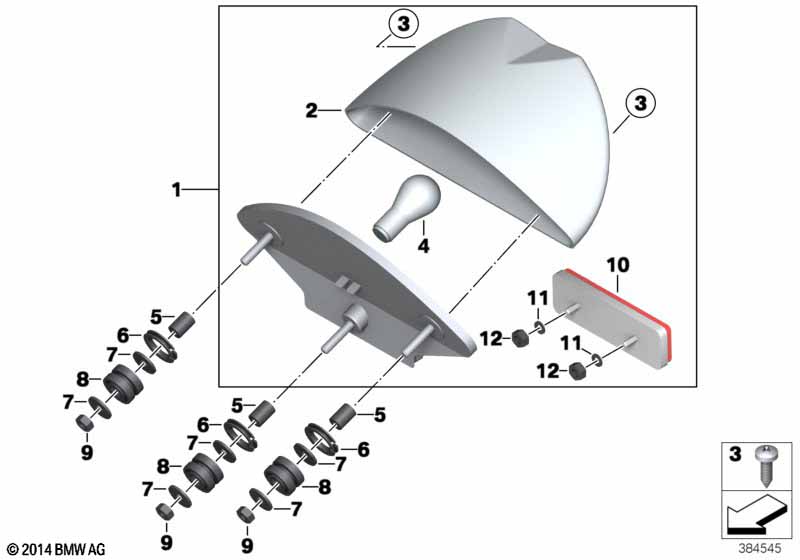

Rear light
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear light 1 63217670324 $84.14 +core
02 Lamp lens 1 63217670325 $34.39 +core
03 Countersunk head screw 3,9X25 2 63217654407 $5.44
04 Longlife bulb 12V 21/5W 1 07119905511 $4.88
05 Bush 3 63212346564 $2.49
06 Insert 2 46631451278 $0.87
08 Grommet 3 63212346579 $2.80
09 Hex nut M6-8-ZNNIV SI 3 07129905817
10 Rear reflector red 1 63212346581 $10.56
11 Washer 9X4,3X0,8-A2 2 07119904924
12 Hex nut M4-A2-70 2 07129906098 $1.00
Notes
  • +core = plus core charge (possibility of a return of the old part)
