R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Single seat with luggage bin

Single seat with luggage bin

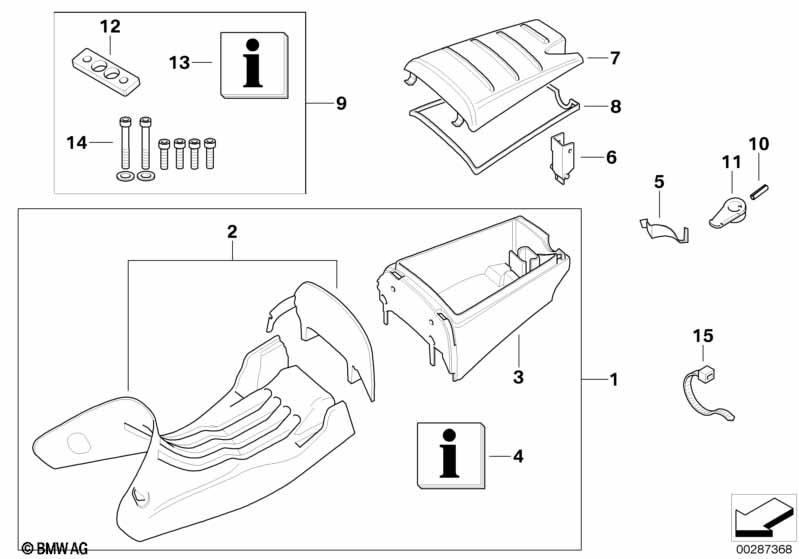

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Retrofit single seat with luggage bin 1 71607653837 $388.74 ENDED, +core
only in conjunction with
-- Lock (with key code) 1 51252313285 $66.25 +core
02 Single seat 800MM 1 71607653838 $261.50 +core
03 Luggage bin 1 71607653839 $103.85 +core
04 Installing, single seat with luggage bin F650GS 1 71607657161 ENDED
05 Fuel filler cap cover 1 71607667945 ENDED
06 Push button 1 71607664994 $12.80
07 Cover 1 71607664993 $32.95
08 Gasket 1 71607667947 $13.03
09 Installation kit, bucket seat 1 71607688805 $16.06 +core, EBA 7688807
10 Roll pin 2,5X18 1 07119941417 $0.62
11 Catch 1 46632313938 $1.82
12 Mounting plate for bucket seat 1 71607688806 $31.04 ENDED
13 Installation guide, single seat 1 01297688807 ENDED
14 Set of screws EINZELSITZ 1 71607667946 $12.45
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
