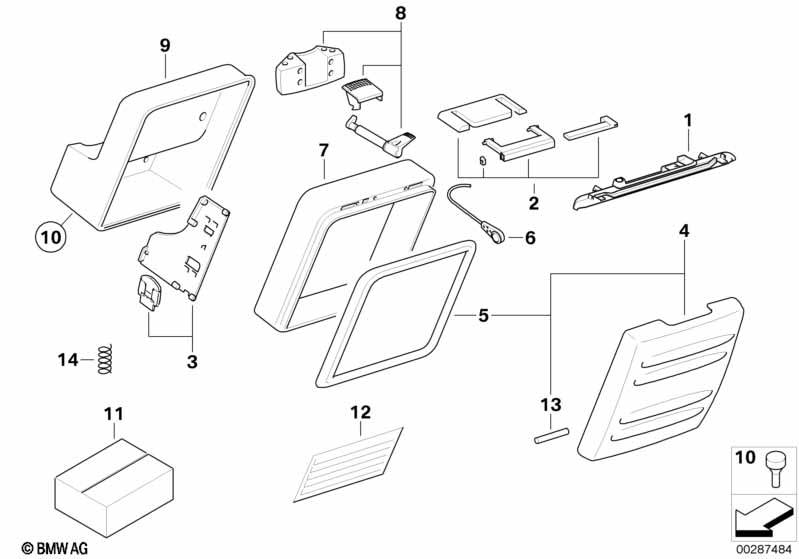

R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Single parts, Vario case

Single parts, Vario case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Lock strip 2 01/2003 71607682774 $45.31
02 Carrier handle 2 71607659597 $24.06
03 Adjust plate left 2 71607660589 $37.81 +core
03 Adjust plate right 2 71607660590 $37.81 +core
04 Cover, left/right ALU 1 77418559938
only applies to
-- Lock strip X 71607682774 $45.31
05 Gasket, case lid L=1420MM 2 71607659600 $14.05
06 Holding straps 2 71607659601 $17.00
07 Adjust frame 2 71607660574 $78.12 +core
08 Topcase locking mechanism 2 71607660601 $103.77 +core
09 Case bottom, left 1 71607659611 $74.38 +core
09 Case bottom, right 1 71607659612 $74.38 +core
10 Bump stop H=10 8 52531236128 $2.80
11 Set of screws for case 2 71607665793 $25.27
12 Label 1 51147661047 $11.12
13 Hinge axle 2 71607660615 $5.44
Notes
  • +core = plus core charge (possibility of a return of the old part)
