R13 (G 650 GS) G 650 GS 09 (0180) Heated handlebar grips

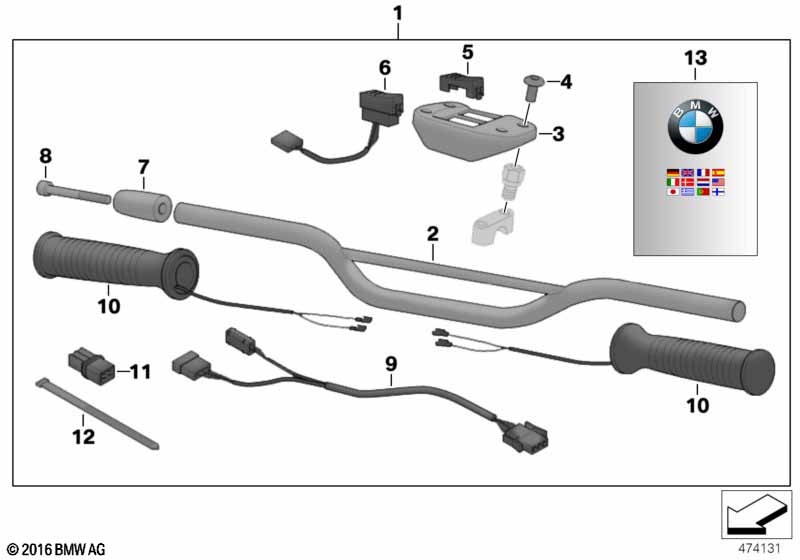

Heated handlebar grips
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Retro.kit, heated grip with handlebar 1 71607684068 $371.94 +core, EBA 7684066
02 Heated handle at handle-bar 1 32717650241 $172.01 +core
03 Switch support 1 46637652163 $10.48
04 Fillister head screw M5X8 4 46637652160 $3.52
05 Covering cap 1 32711459318 $2.03
06 Switch handle heated 1 71607653282 $52.36 +core
07 Handlebar vibration absorber 2 32712346586 $34.04
08 ISA screw M6X60-8.8-ZNFE 2 07129905006 $2.80
10 Heated handle, left 1 61317653173 $110.00 +core
10 Heated handle, right 1 61317653174 $120.62 +core
12 Plug housing 2-POLIG 1 61131357903 $0.84 ENDED
12 Cable tie L=200MM/B=3,6MM X 61131367599 $0.43
13 Install.instruct.,heated handlebar grips F650GS/MÜ 1 01297684066
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
  • ENDED = the part has been discontinued (no longer available).
