K14 (F 650 CS) F 650 CS 04 (0177,0187) Single parts for oil pump

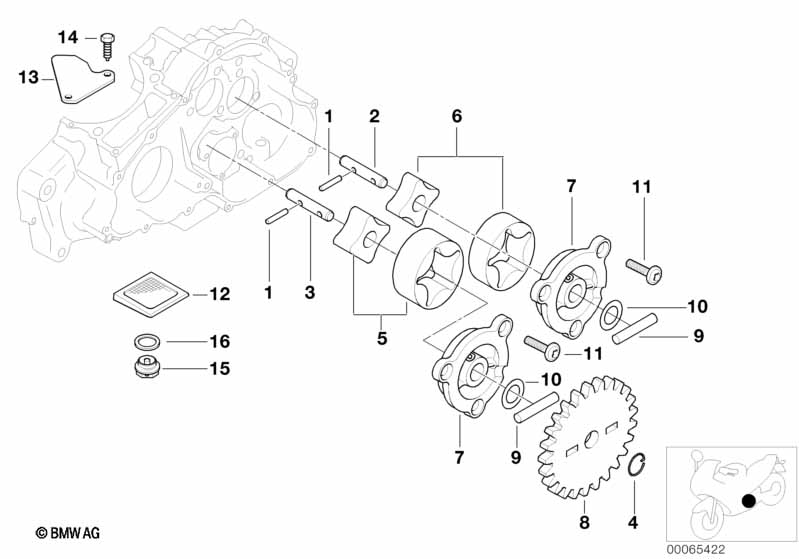

Single parts for oil pump
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Roll pin 4X15,8 2 11412343105 $1.58
02 Shaft, pressure side L=52MM 1 11417652910 $17.82
03 Shaft, suction side L=55MM 1 11417652909 $17.82
04 Lock Ring 2 11412343458 $1.09
05 Set rotor, suction side 1 11417652928 $61.89 +core
06 Set rotor, pressure side 1 11417652927 $59.02 +core
07 Oil pump cover 2 11412343106 $34.17
08 Gear wheel 25 2 11412343109 $10.56
09 Roll pin 4X29,8 2 11412343108 $2.51
10 Stop disk 10,1X17X1 2 11412343107 $1.10
11 Torx bolt M5X16 6 11417654012 $0.87
12 Oil strainer 1 11412343114 $12.56
13 Strainer plate 1 11417652858
14 Screw self-tapping M5X16 2 11412343116 $0.87
15 Screw plug, magnetic M24X2 1 11137708604
16 Gasket ring 24X30X1,5 1 11417652949 $2.60
Notes
  • +core = plus core charge (possibility of a return of the old part)
