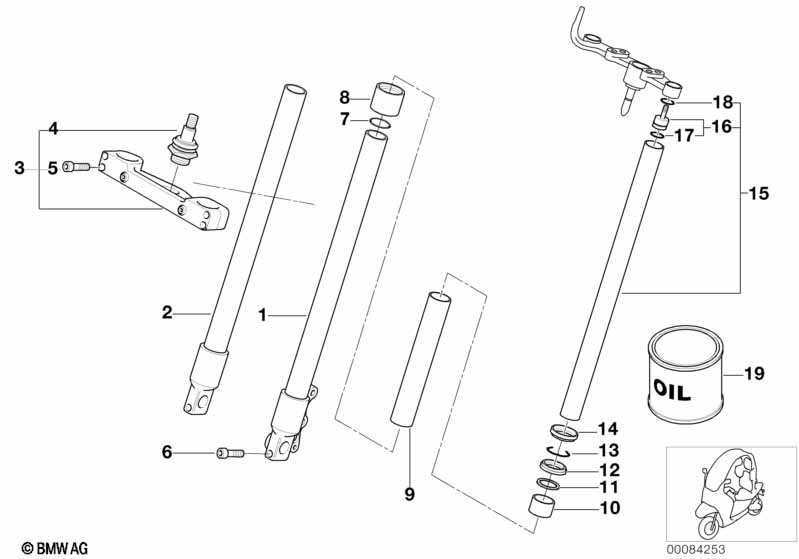

C1 C1 200 (0192) Ball joint fork, stanchion/slider

Ball joint fork, stanchion/slider
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Slider tube left 1 31427663927 +core
02 Slider tube right 1 31427663928 +core
03 Lower fork cross brace 1 31422330692 +core
04 Ball joint 1 31422311409 $140.92 +core
05 Fillister-head screw M8X30-8.8-ZNS 4 07119901025 $0.47
06 Fillister-head screw M8X35 ZNS 2 07119901027 $1.22
07 O-ring 2 31427659033
08 Seal housing, slider 2 31422335934 +core
09 Spacer tube 4 31422335931
10 sliding sleeve 4 31422335932
11 Washer 2 31422335940
12 Shaft seal 2 31427652715
13 Lock Ring 32X42,2 2 31422335938
14 Cup 32X42,2 2 31422338086
15 Fork tube 2 31422335927 +core
16 Plug 2 31422330694
17 O-ring 2 31422335638
18 Lock Ring D=29,5 2 31422335928
19 Telescopic fork oil type 1 1000ML X 31429062158 $27.35
Notes
  • +core = plus core charge (possibility of a return of the old part)
