K71 (F 800 S, F 800 ST, F 800 GT) F 800 S (0216,0226) Heat exchanger/Leads

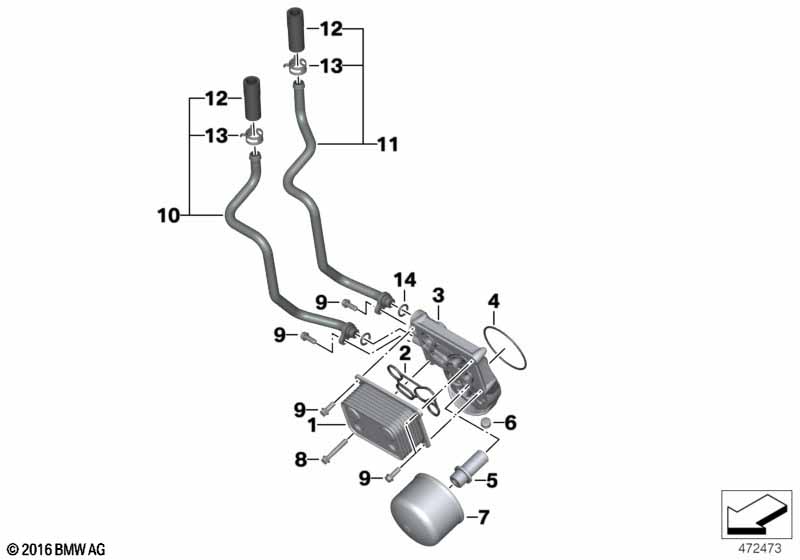

Heat exchanger/Leads
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Heat exchanger, silver 1 11538534009
01 Heat exchanger, black 1 11538524136
02 Preformed seal 1 11447687365 $10.40
03 Adapter for heat exchanger, silver 1 11447689340 $178.80 +core
03 Adapter for heat exchanger, black 1 11447711154 +core
04 O-ring 63X2,5 1 11447687367 $2.67
05 Threaded bolt 1 11447687378 $34.58
06 Screw plug M12X1,5 2 11447687368 $2.17
07 Oil filter, silver 1 11427707217 $20.23
07 Oil filter, black 1 11427719357 $20.84 ENDED
07 Oil filter, black 1 11428409567
08 Hexagon bolt with inside Torx M6X35-8.8 1 12317707433
09 Hexagon bolt with inside Torx M6X16-8.8 5 23007690404 $1.39
10 Pipe, silver 1 11447686644 $96.08 ENDED
10 Pipe, silver 1 11447682016
10 Pipe black 1 11447721130 +core
11 Pipe, silver 1 11447686372
11 Pipe black 1 11447721129 +core
12 Hose 2 17217686971 $5.87
13 Spring ring shell D=19 4 17127696377 $2.23
14 O-ring 12X2,5 2 11117694729 $1.32
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
