R 60 -69 R60/2 Crankshaft

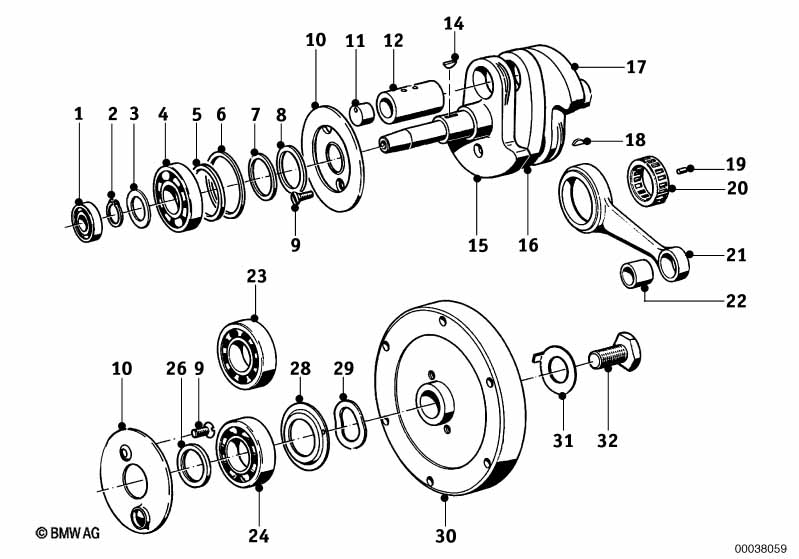

Crankshaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
04 Grooved ball bearing 6207 TN 1 07119981250 $42.00
04 Grooved ball bearing 6207 MB 1 07119981245 $108.43 +core
05 Shim 2,00MM 1 26113038127 $3.12 ENDED
3,5 mm
08 Ring 1 11210016268 $12.56 ENDED
09 Senkschraube Am6x10-4.8 Phr 0000000000 4 07119900106 ENDED
10 Oil thrower plate 2 11210016221 ENDED
11 Plug 2 11210016264 ENDED
12 Crank journal 2 11210016263 ENDED
14 Woodruff key 5X6,5 1 07119951480 $0.88
15 Crank shaft flange 1 11210016246 ENDED
16 Crankshaft 1 11210016062 ENDED
17 Crank shaft flange 1 11210016286 ENDED
18 Woodruff key 1 11210016132 $4.85
20 Ax-bearing cage 2 11240017720 ENDED
21 Connecting rod 2 11240017701 $145.00
22 Bush 2 11241327167 $11.61 ENDED
24 Grooved ball bearing 6207 TN 1 07119981250 $42.00
24 Grooved ball bearing 6207 MB 1 07119981245 $108.43 +core
2,0mm
26 Spacer 1 11210016266 $18.05 ENDED
28 Cover 1 11210016252 $10.97 ENDED
29 Spring washer 1 11210016130 ENDED
30 Flywheel 1 11220068037 ENDED
31 Securing plate 1 11210016225 $7.39
32 Hex bolt 1 11220016251 $32.13 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
