K71 (F 800 S, F 800 ST, F 800 GT) F 800 S (0216,0226) Engine oil / maintenance service

Engine oil / maintenance service

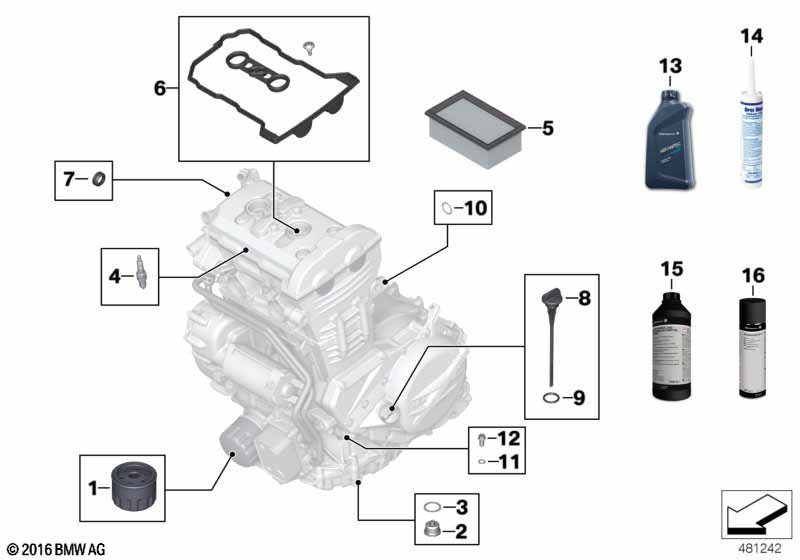

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil filter, silver 1 11427707217 $20.23
01 Oil filter, black 1 11427719357 $20.84 ENDED
01 Oil filter, black 1 11428409567
02 Screw plug, magnetic M24X2 1 11137708604
03 Gasket ring 24X30X1,5 1 11417652949 $2.60
04 Spark plug DCPR8E 2 12127690603 $12.40 +core
05 Air filter element 1 13717678281 $25.71
06 Gasket set, cylinder head cover 1 11128520621 +core
07 Gasket 1 11517690488 $9.02
08 Dipstick silver 1 11437689484 $26.00
Required for repair
-- O-ring 21,83X2,53 1 11437689572 $0.83
08 Dipstick, black 1 11437711148
Required for repair
-- O-ring 21,83X2,53 1 11437689572 $0.83
09 O-ring 21,83X2,53 1 11437689572 $0.83
10 Gasket ring 18,2X24X1 1 11312343091 $0.83 SI 115794667
11 Gasket ring A8X13 1 11112343010 $0.83
12 Torx screw with collar M8X16 1 11117699121 $2.29
13 Motor oil ADVANTEC 15W-50 1L X 83212365963
14 Sealing compound Drei Bond 1209 30ML 1 07589062376
14 Silicone sealant Drei Bond 1209 310ML 1 83199407773 ENDED
15 Radiator/antifreeze/anti-corrosion agent 1,5L X 83512445463
16 Brake cleaner 2.0 500ML X 83192445462
For vehicles with
National version China

Y770A=Yes
16 Brake cleaner 2.0 500ML X 83192406954
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
