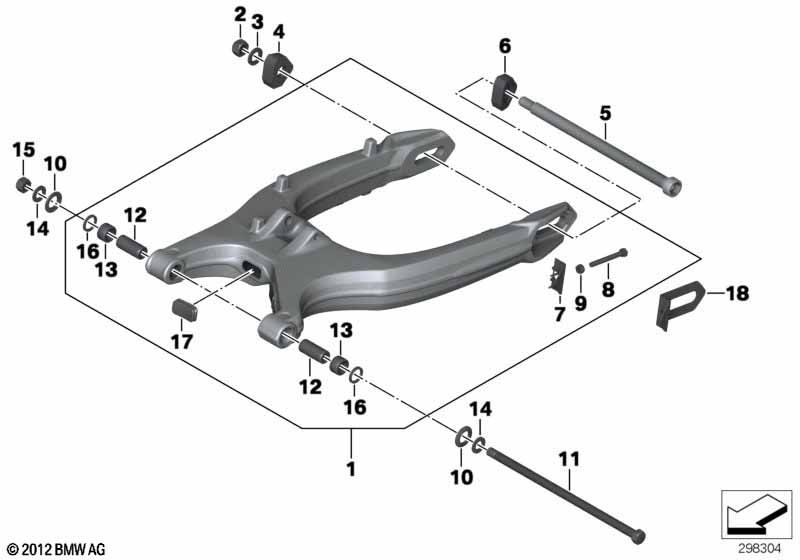

K72 (F 650 GS, F 800 GS) F 650 GS (0218,0228) Rear wheel swinging arm
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear swing arm, nürburgsilber | 1 | 33178531476 | +core | |||||
| 01 | Rear wheel swinging arm, black | 1 | 33178549120 | ||||||
| 02 | Hex nut | M16 | 1 | 36317704461 | $13.76 | ||||
| 03 | Washer | 16-200-HV-ZNS3 | 1 | 07119906046 | $0.92 | ||||
| right | |||||||||
| 04 | Chain tensioner | 1 | 36317698731 | $38.10 | +core | ||||
| 05 | Axle shaft rear | 1 | 36317720906 | $116.17 | +core | ||||
| left | |||||||||
| 06 | Chain tensioner | 1 | 36317720907 | ||||||
| 07 | Cover | 2 | 33178520404 | ||||||
| only applies to | |||||||||
| -- | Rear swing arm, nürburgsilber | X | 33178531476 | +core | |||||
| 08 | Hex bolt | M8X70-8.8-ZNS3 | 2 | 07119906001 | $2.80 | ||||
| 09 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | ||||
| 10 | Stop disk | 22X36X4,5 | 2 | 33177659190 | $4.03 | ||||
| 11 | Swinging fork pivot | 1 | 33177695830 | $38.90 | +core | ||||
| 12 | Bushing | 2 | 33177695543 | $22.32 | |||||
| 13 | Needle sleeve | 22X28X16 | 4 | 33537650093 | $10.43 | ||||
| 14 | Washer | A15 ZNS3 | 2 | 07119905829 | $0.74 | ||||
| 15 | Self-locking hex nut | M14X1,5-8-ZNS3 | 1 | 07129906047 | $2.39 | ||||
| 16 | Gasket ring | 4 | 33177650203 | $3.62 | |||||
| 17 | Covering cap | 2 | 33177686884 | $13.81 | |||||
| 18 | Shield | 2 | 33177699749 | $24.69 | |||||
| only applies to | |||||||||
| -- | Rear wheel swinging arm | X | 33177708021 | $1187.65 | ENDED, +core | ||||
| -- | Rear wheel swinging arm, black | X | 33177728654 | ENDED, +core | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
